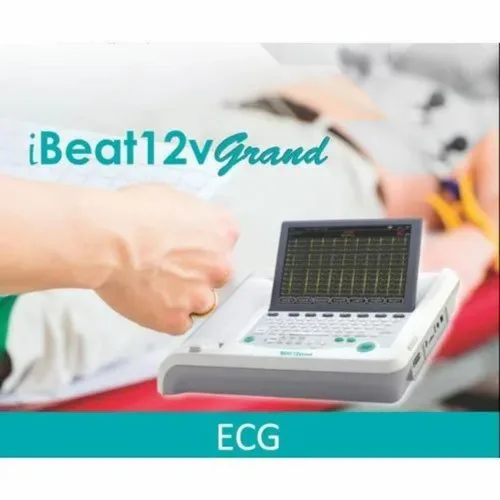

12V Grand Resting ECG Machine
₹ 8,40,000
Brand: Others
sunshine medical systems
Verified Supplier
Location
Jaipur, Rajasthan
GST No.
08ACKFS0838G1ZY
Total Products
3+ Products
Secure
Fast Delivery
Easy Returns
Quality
1
| CMRR | 100dB |
| Lead | Standard 12 leads |
| Weight | 4Kg |
| Display | 800x480 pixel TFT LCD |
| Dimension | 435mmx335mmx98mm |
| Interface | Network interface,USB Master/Slave,SD card |
| Noise Level | <15Vp-p |
| Paper Speed | 5mm/s,6.25mm/s,10mm/s,12.5mm/s,25mm/s,50mm/s |
| Sample Rate | Normal:1000sps/channel Pacemaker: 10,000sps/channel |
| Sensitivity | 2.5 mm/mV,5 mm/mV,10 mm/mV,20mm/mV |
| Power Supply | AC:100~240V,50/60Hz,70VA~100VA DC:14.8V/4400mAh,built-in lithium battery |
| Input Circuit | Built-in defibrillator protection |
| Time Constant | 3.2s |
| Recording Mode | Automatic: 12CHX1,6CHX2+1R,6CHX2,3CHX4+3R3CHX4+1R,3CHX4 |
| Input Impedance | 50M |
| Safety Standard | IEC I/CF |
| Acquisition Mode | Simultaneous 12 leads acquisition |
| Recording System | Manual: 12CH,6CH,3CH,1CH+1R,1CH Rhythm: Any lead selectable Thermal matrix printing |
| Measurement Range | +- 5mVpp |
| Anti Baseline Drif | Automatic |
| Frequency Response | 0.05Hz~150Hz (-3dB) |
| Input Circuit Current | < 0.05 |
This 12V Grand Resting ECG Machine features a 435x335x98mm dimension, 800x480 pixel TFT LCD, and simultaneous 12-lead acquisition. Offers automatic and manual recording modes.
