Product Specifications
| Type | Single Ended Shear Beam |
| Model | 30310 |
| Capacity | 10000 Kg |
| Material | Stainless Steel |
| Application | Low profile |
| Ingress Protection | IP68 |
| Maximum Safe Overload | 150% FS |
| Output Sensitivity(FS) | 3.0 +/- 0.003 mV/V |
| Operating Temperatue Range | -20 to +70 Deg C |
| Compensated Temperature Range | -10 to +40 Deg C |
| Recommended Excitation Voltage | 5 to 15V DC |
| Insulation resistance at 50V DC | >= 1000 M Ohm |

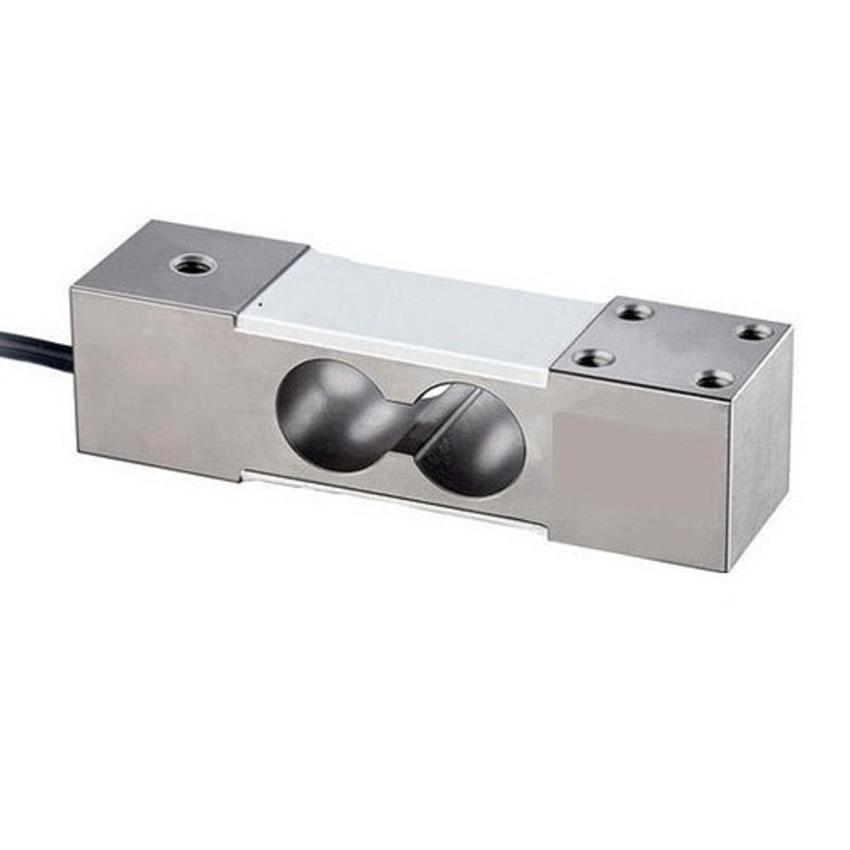

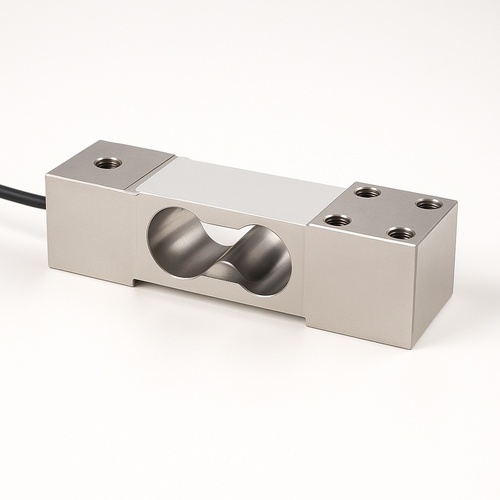

Product Description
Stainless steel single-ended shear beam load cell, model 30310. Features IP68 protection and 10000 Kg capacity for low-profile applications. Offers 3.0 mV/V sensitivity and 150% FS overload protection.
