38 Milling and Drilling Machine

Name: 38 Milling and Drilling Machine
Brand: RAJSEN BANKA
SKU: 691264
Price: 110000 INR
Availability: InStock

₹ 1,10,000

Brand: RAJSEN BANKA

RAJSEN MECHATRONICS & TOOLS

Verified Supplier

Location

Chennai, Tamil Nadu

GST No.

33AAOFR9019G1ZZ

Total Products

35+ Products

Secure

Fast Delivery

Easy Returns

Quality

Quantity

Product Specifications

Size	38
model	BANKA 38
Lubrication	Lithium Grease
Column diameter	150 x 150 Square
Cross Slide travel	600 x 230 mm
No. of Power Feeds	3
Max. spindle Travel	170 mm
Milling Specification	SIZE
No. of Spindle Speeds	18
Spindle Sleeve Diameter	75
Spindle to base distance	550 mm
Drill Specification	Size
Feed Range per Revolution	0.08-0.02-0.04
Spindle Speed Range (RPM)	22-1020
Morse Tapper in Spindle Nose	MT4
Boring Capacity in Mild Steel	75
Tapping Capacity in Mild Steel	15
Distance from column to spindle	300 mm
Drilling Capacity in Mild Steel	32
Max. Spindle Travel (Drilling Depth)	170
Tapping Capacity in Cast Iron (241 BHN)	20
Drilling Capacity in Cast Iron (241 BHN)	40

Product Description

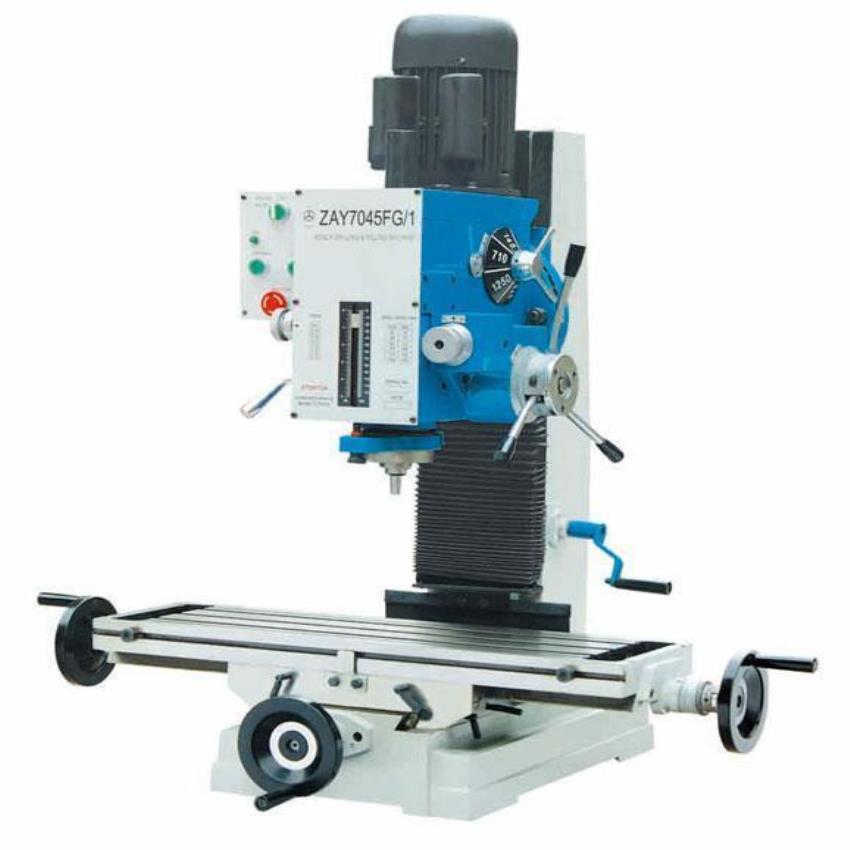

A milling and drilling machine with 32mm mild steel drilling capacity, 18 spindle speeds, and MT4 taper. Features 3 power feeds and 170mm max spindle travel.
