Product Specifications
| Capacity | 1500 Nm |
| Material | Alloy Steel |
| Hysteresis | +- 0.02% FS |
| Sensitivity | 2.0 +- 10% mV /V |
| Cable Length | 5 m |
| Model Number | SES - TS |
| Zero Balance | +- 1.0% FS |
| Repeatability | +- 0.01% FS |
| Safe Overload | 150% FS |
| Ultimate Load | 300% FS |
| Creep (20 Min.) | +- 0.03% FS |
| Non - Linearity | +- 0.025% FS |
| Input Resistance | 400 +- 10 Ohm |
| Zero Temperature | +- 0.003% FS/ Degree C |
| Output Resistance | 350 +- 5 Ohm |
| Recommended Voltage | 10V (DC/AC) |
| Insulation Resistance | 5000 MOhm (@ 50V DC) |
| Temperature Operating | +60 DegreeC |
| Maximum Supply Voltage | 15V (DC/AC) |
| Minimum Order Quantity | 1 |
| Temperature Compensated | +50 DegreeC |
| Rated Output Temperature Coefficient | +- 0.003% FS/ Degree C |
Product Description

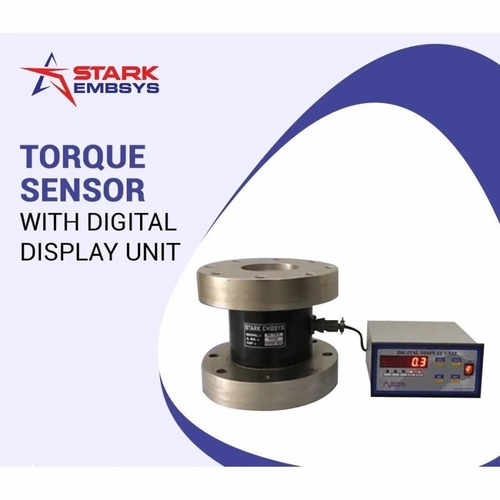

Flange type torque sensor with 1500 Nm capacity. Alloy steel construction, ±0.025% FS non-linearity, ±0.01% FS repeatability. 5m cable included.
