| Depth | 530 mm (60 Inch ) |
| model | EDGE |
| Colour | RAL 7035 / RAL 5008 |
| Height | 990 mm (78 Inch ) |
| Weight | 4500 kg (9921 lb) |
| Workpiece | Diameter 220 mm (8.66 Inch) max., weight 20 kg (44 lb) max |
| Wheel Bore | 31.75 mm (1.25 Inch ) |
| Wheel Packs | two wheel packs with max. four wheels per pack |
| Drive System | ANCA Digital (EtherCAT standard). Linear axes direct-drive ballscrew, rotary axes direct drive |
| Loading Time | 20 second loading time |
| Machine Data | Grinding spindle ANCA bi-directional, 8 kW (10 HP) peak power, 3.7 kW (5HP) (S1 at 6000 RPM), 10,00 |
| Communication | EtherCAT |
| Software Axes | (patented) B, V, U, W |
| Tool Diameter | 16 mm |
| Grinding Wheel | max. diameter 202 mm (8 Inch ) |
| Pallet Capacity | 42 |
| Floor Plan Width | 160 mm (85 Inch ) |
| Tool Length Range | 30 - 150 mm (1 1/4 - 6 Inch ) |
| Maximum Head Diameter | 25 mm (1 Inch ) |
| Ideal For Loading Tools | 2 - 20 mm (1/8 - 3/4 Inch ) |

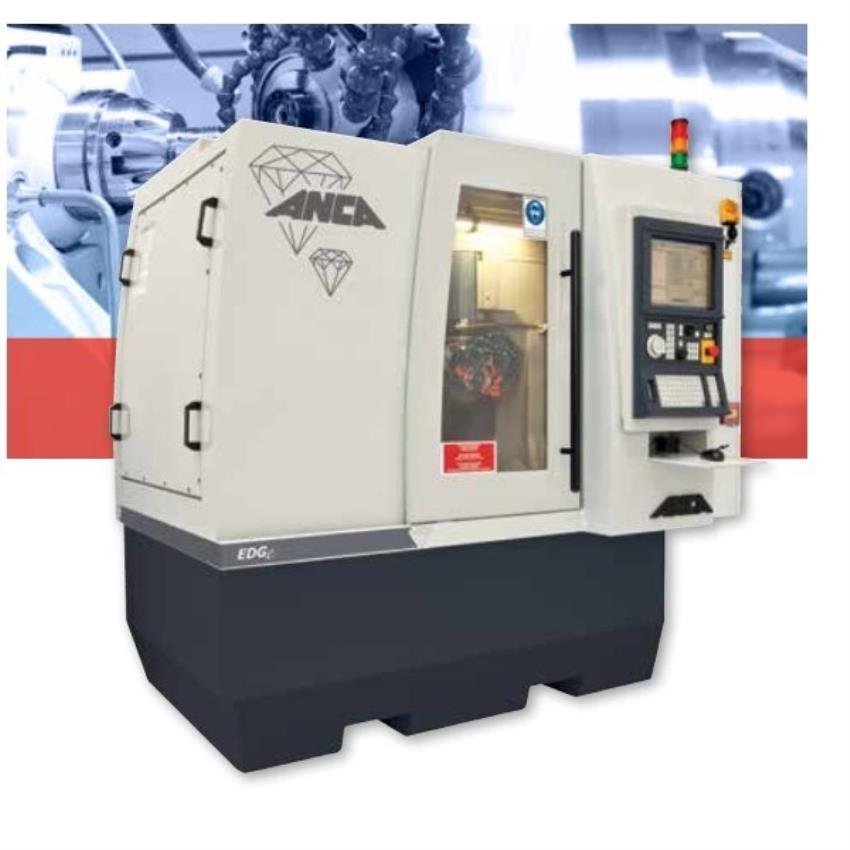

ANCA EDGE machine for PCD tool grinding. Features 8kW peak power spindle, EtherCAT drive system, and capacity for tools 2-20mm. Max grinding wheel diameter is 202mm.
