Product Specifications
| Model | ET 680 SP |
| Weight | 220 Kg |
| Dimension | 880 × 680 × 1650 mm |
| Air Supply | 4 – 6 Kg/cm² |
| PCB Dimension | 320 × 450 mm |
| Printing Method | Stencil Movement |
| Power Consumption | 100 W |
| Power Requirement | 220 V AC, 50 Hz, 1 Phase |
| Printing Platform | 350 × 500 mm |
| Stencil Dimension | 370 × 470 to 550 × 650 mm |
| Printing Precision | ± 0.02 mm |
| PCB Thickness Range | 0.2 – 3.0 mm |
| PCB Positioning Method | Positioning |
| Fine Adjustment of Platform | ± 0.05 mm |
Product Description

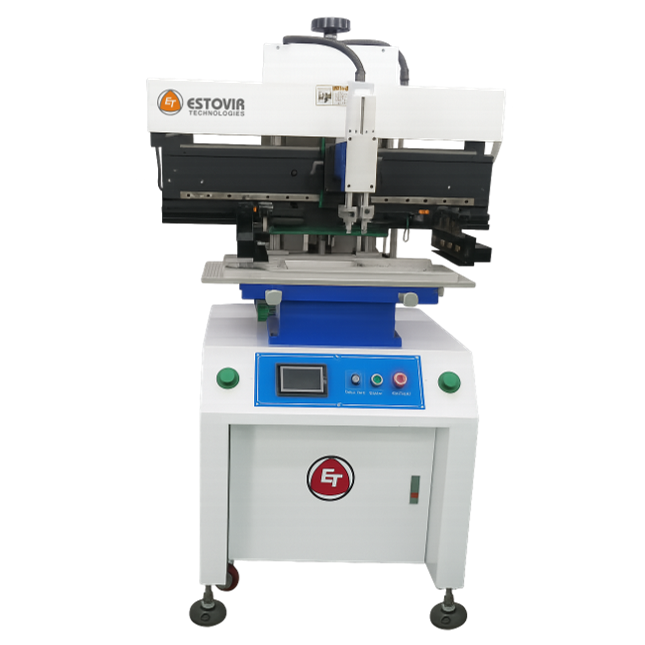

Semi-automatic solder paste printer ET 680 SP features a 350x500mm printing platform and supports PCB dimensions up to 320x450mm. Offers precise ±0.02mm printing precision and ±0.05mm platform adjustment.
