Product Specifications
| Chiller Unit | 0.6 TR |
| Delivery Time | 3 to 4 weeks |
| Packaging Type | Wooden Box |
| Vacuum Chamber | 100 L |
| Water Discharge | Automatic |
| Operation Vacuum | 750 mm of Hg |

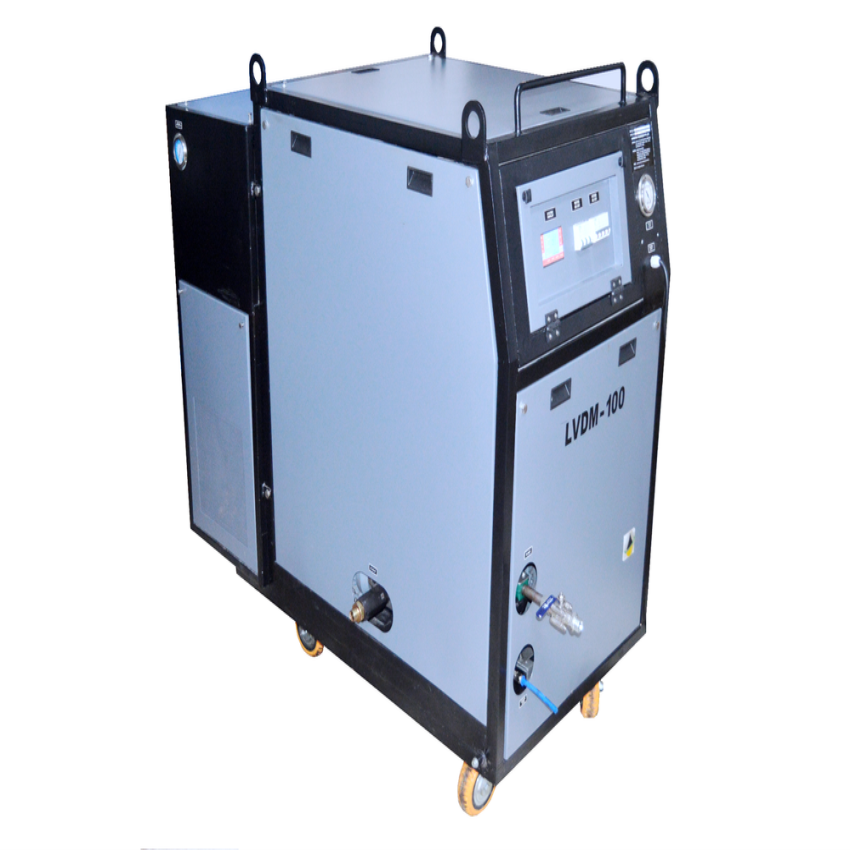

| Model Name/Number | LVDM-100 - With HMI and PLC control - Touchscreen display |
| Approximate Weight | 300 Kg |
| Low Watt Density Heater | 8 kW |
| Discharge Pump With Motor | 50 LPM, 2 HP |
| Oil Inlet And Outlet Hoses | 3/4" BSP |
| Suitable For Tank Capacities | 5000 L |
| HMI With Touch Screen Display | 4.3" PLC with 8 I/O |
| Vacuum Pump With Motor (Belt Driven) | 200 LPM, 0.5 HP |
Product Description
Features 4.3" HMI touchscreen, PLC control, 750 mm Hg vacuum, 100 L vacuum chamber, and 5000 L tank capacity suitability. Includes 0.6 TR chiller and 200 LPM vacuum pump.
