Product Specifications
| Power | 3/4 HP (Main Motor) |

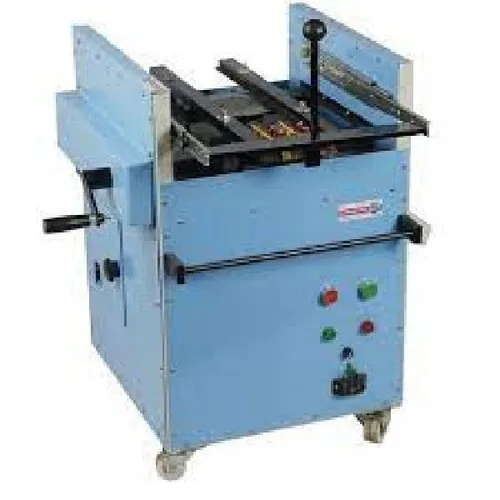

| model | Automatic PCB Lead Cutting Machine |
| Weight | 115kg |
| Voltage | 220 V AC |
| Material | Mild Steel |
| Frequency | 50 Hz |
| Automation | Automatic |
| Max PCB Size | 500 mm (L) x 300 mm (W) |
| Conveyor Speed | 0-3 M/min,adjustable |
| Cutting Height | 0.6 mm Minimum |
| Thickness of PCB | 0.8 mm to 2.5 mm |
| Main Spindle Speed | 4500 RPM |
| Tungsten Carbide Blade | ID-70 mm,OD - 200 mm & 250 mm both size |
Product Description
Automatic PCB lead cutting machine with 3/4 HP motor. Features adjustable conveyor speed (0-3 M/min) and 4500 RPM spindle speed. Accommodates PCBs 0.8mm to 2.5mm thick.
Similar Products

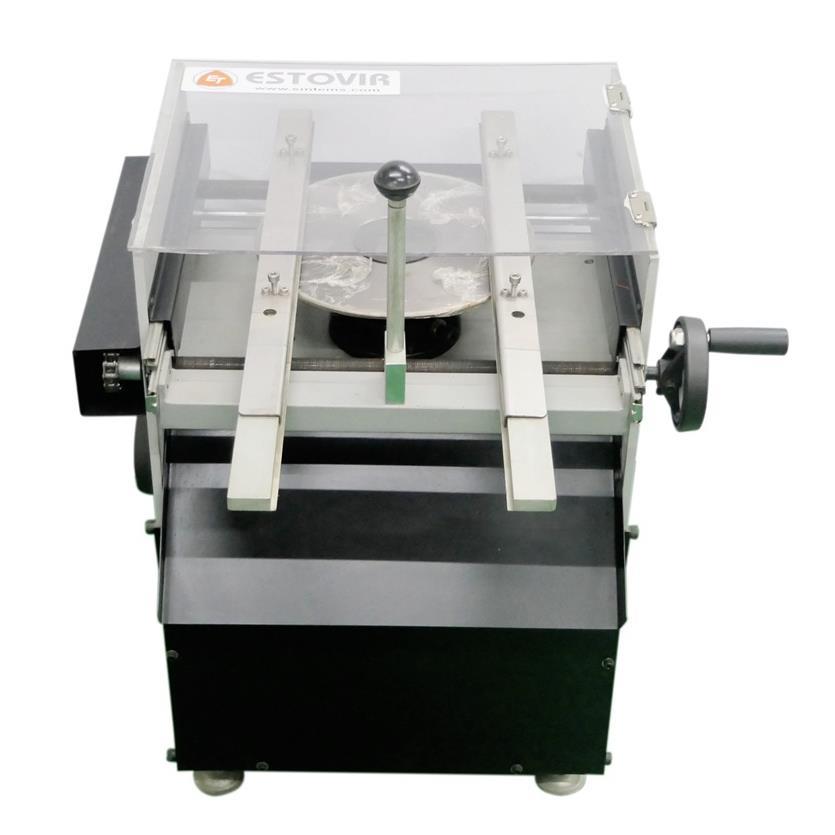

PCB Lead Cutter Machine - LC M66
Brand: Others
₹48,000
M/S ESTOVIR TECHNOLOGIES
Faridabad, Haryana

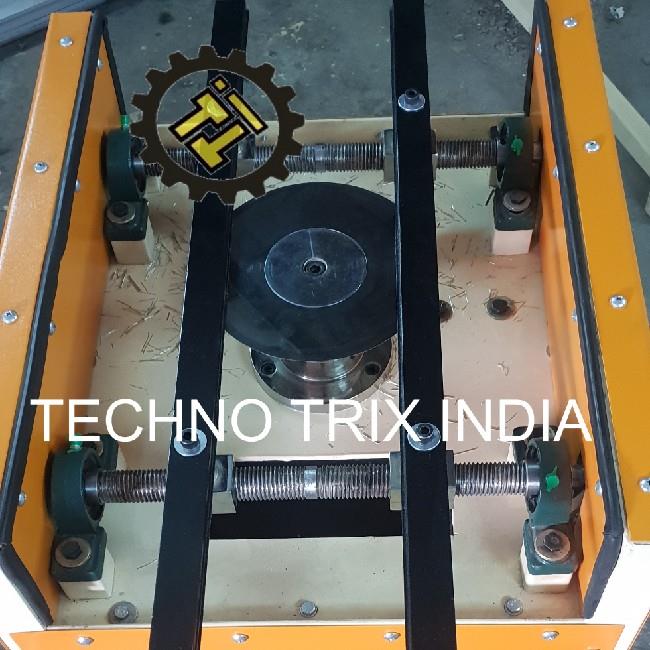

Electronic Lead Cutting Machine
Brand: Others
₹34,000
TECHNO TRIX INDIA
Delhi

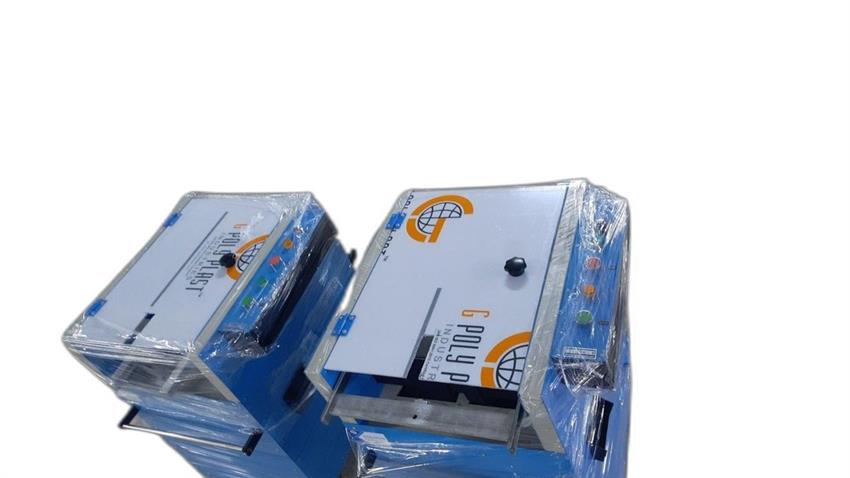

Semi-Automatic PCB Lead Cutter - Model 010
