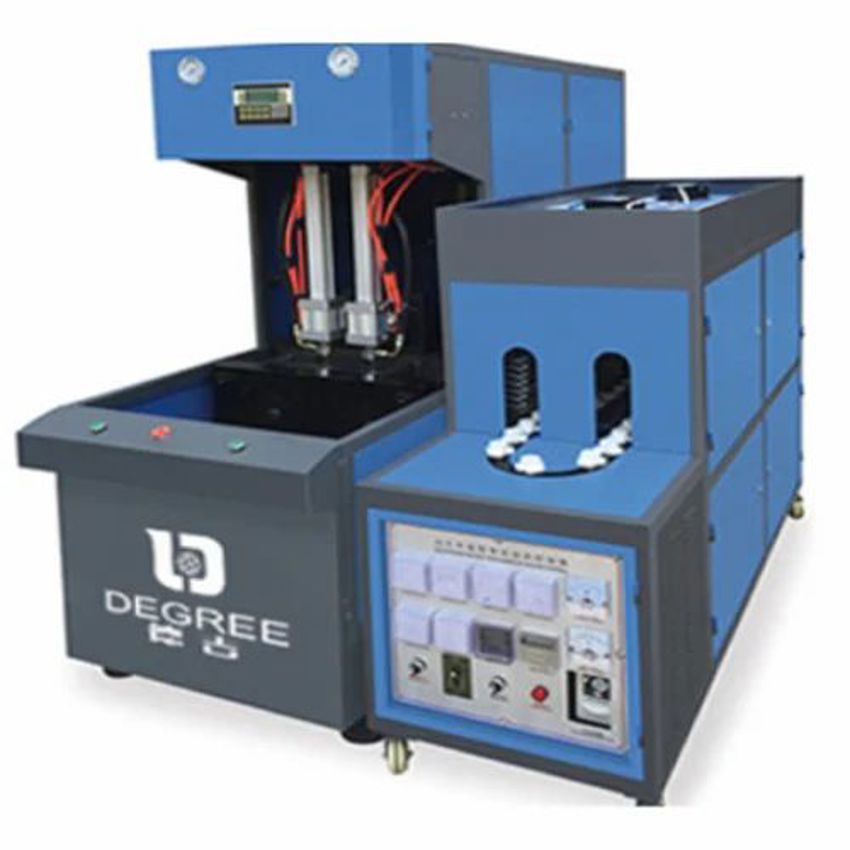

Automatic Plastic PET Bottle Blow Machine

Name: Automatic Plastic PET Bottle Blow Machine
Brand: SIEMPRE MACHINERY PRIVATE LIMITED
SKU: 730470
Price: 410000 INR
Availability: InStock

₹ 4,10,000

Brand: Others

SIEMPRE MACHINERY PRIVATE LIMITED

Verified Supplier

Location

North Twenty Four Parganas, West Bengal

GST No.

19ABICS2762H1Z0

Total Products

40+ Products

Secure

Fast Delivery

Easy Returns

Quality

Quantity

Product Specifications

Net Weight	850kgs
Clamping Force	100KN
Preform Heater	18007001400mm
Clamping Stroke	160 MM
Voltage Standard	380v/3PH/50Hz or special order
Low Air compressor	10Bar
Number of Cavities	2 Cavity
Theoretical Output	900 BPH(500ml)
High Air compressor	30-40Bar
Max. Mold Thickness	300MM
Neck Diameter Range	18-120mm
Blow molding machine	14506001700mm
Max. Container Height	380mm
Max. Container Volume	2L
Max. Stretching Stroke	360MM
Minimum Order Quantity	1
Number of Heating Zone	4 Sections
Max. Container Diameter	360mm
Total Power (Full Loaded)	10KW

Product Description

2-cavity semi-automatic PET bottle blow machine. Features 360MM max stretching stroke, 160MM clamping stroke, 10KW total power, and 900 BPH theoretical output for 500ml bottles.
