Product Specifications

Power3ph + N
Speedvariable (DC Drive)
Cylinder50mm X 400mm 3pcs, 32mmX 50mm 1pcs (Janatics)
Contector32 Amp 4 poll
Item Code800617-web-sealer-shrink-SSbelt
Film SystemRoll Rewinding System
Blower Motor2 Pcs swati Make , 3 Ph ,2880 RPM . 0.18 HP
Sealing Size26" (Hot Knife Technology)
All Pneumaticjanatics
Conveyor TypeS.S. Mesh Belt
Delivery TimeReady
Packing Speed6 Pack Per Min (Multiple as per goods size)
Working Height16"
PMDC Drive Make1 Hp Mega
Packing MaterialLDPE Shrink Film
Port Of DispatchRajkot
Extra RequirementAir Compressor will be your Scope
Power Consumption13Kw / 18 HP
Programable TimerMultispan / Selectron
Temperature Range400 degree
Film Sealing Heater1kw 1 heater (SS Tubler Heater)
Total Machine Weight375 Kg
Working Air Pressure7 kg
Conveyor Load Capacity150 Kg
Heater Type & Make30" U type Finch (make- Monarch)
Minimum Order Quantity1 Piece
MCB & Contactor MakeSchneider
Free Roller Table (L X W)34" X 28"
Web Sealer Size (L X W x H)42" X 30" x 74"
Shrink Machine Size (L X W X H)84" x 30" x 58"
Cooling Chamber Size (L X W X H)15" X 22" X 16"
Heating Chamber Size (L X W X H)48" X 22" X 16"
Maximum Packing Dimension (W X H)18" X 13"
Web Sealer Window Size (L X W X H)6" + 6" X 27" X 16"
Conveyor Motor (Make & Rating )0.5 HP D.C ( Bonfiglioli )
No. Of Heaters & Heater Wattage30" - 9 pcs (1500 W)
Temperature Controller Type & MakeMultispan Tc -44

Product Description

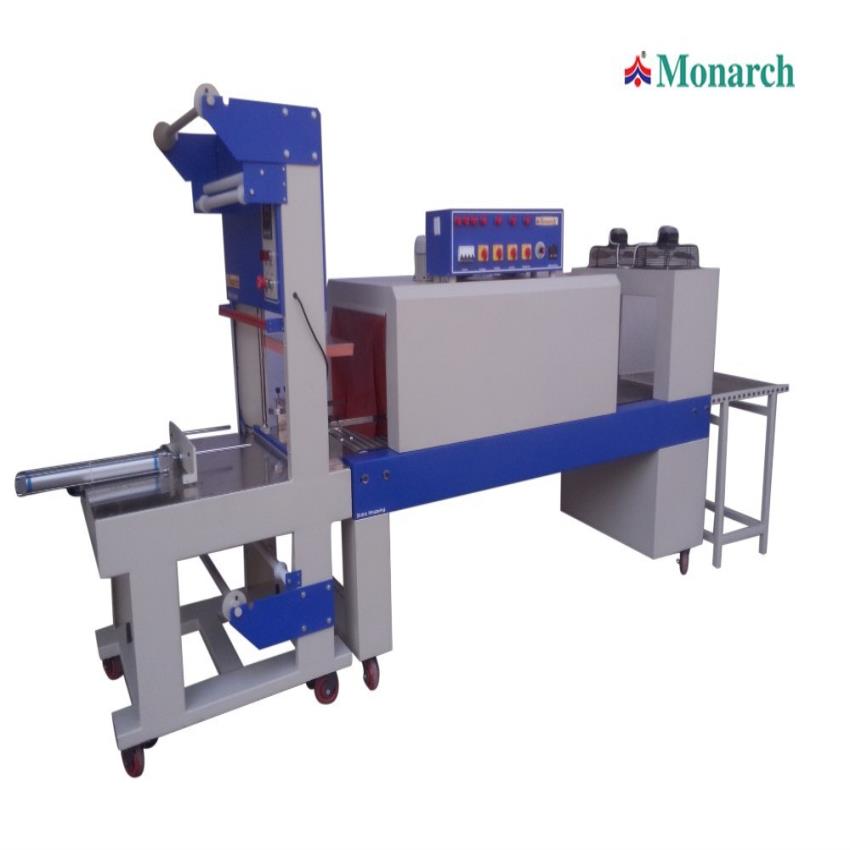

LDPE shrink film packing machine with 6 packs/min speed. Features 30" hot knife sealing, variable DC drive, and 13Kw power consumption. Ideal for multiple pack sizes.
