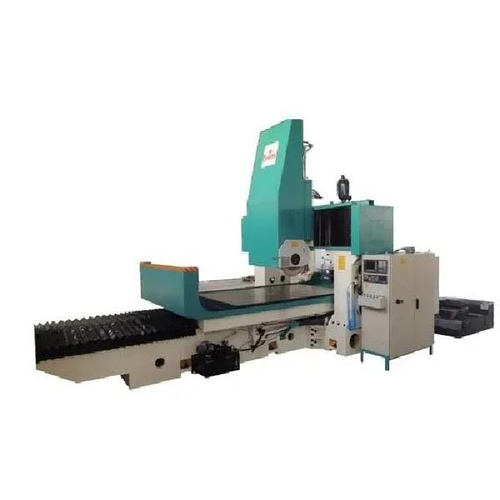

| Modal | C2X 4080 Double Column CNC Surface Grinding Machine |
| Model Number | C2X 4080 |
| Spindle Speed | 1000-1400 RPM |
| Rapid Traverse | 3000 mm Aprox |
| Hydraulic Motor Power | 15 HP |
| Hydraulic Table Speed | 1.5-1.8 / 2.5-25 (Optional) |
| Crossfeed Rapid Feedrate | 3000 mm/min |
| Grinding Wheel Dimension | 510x100x203 mm |
| Grinding Surface Of Table | 1000x2000 mm |
| Wheel Bottom To Table Size | 600 mm (Vertical Head) |
| Clearance Between the Coloums | 1200 mm |
| Spindle Center Height From Table | 850 mm |
Features 1200mm column clearance and 1000x2000mm table. Spindle speed up to 1400 RPM. Hydraulic motor power is 15 HP. Grinding wheel dimensions: 510x100x203 mm.
