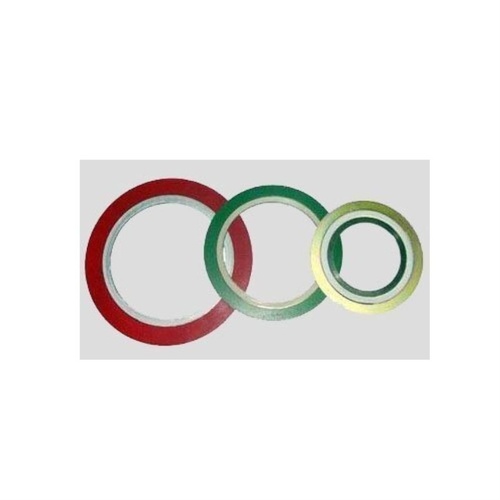

Champion 316L Stainless Steel Spiral Wound Gasket

Name: Champion 316L Stainless Steel Spiral Wound Gasket
Brand: Champion
SKU: 708579
Price: 500 INR
Availability: InStock

₹ 500

Brand: Champion

Excel Trading Corporation

Verified Supplier

Location

Pune, Maharashtra

GST No.

27AABFE7602H1ZN

Total Products

97+ Products

Secure

Fast Delivery

Easy Returns

Quality

Quantity

Product Specifications

Tolerance	+-0.125 mm
Winding Material	316 / 316L Stainless Steel
Nominal Thickness	3.2 mm,4.5 mm
Diameter Tolerance	for NB 32 to NB 80 - 0.762 mm,NB 100 to NB 600 +1.524 mm
Maximum Temperature	650 Degree C
Gaskets OD Tolerance	for NB 15 to NB 200 - 0.406 mm,NB 250 to NB 600 - 0.762 mm
Inner Ring Thickness	2.97 mm to 3.33 mm
CAF Maximum Temperature	440 Degree C
Center Ring OD Tolerance	0.762 mm
PTFE Maximum Temperature	260 Degree C
Graphite Maximum Temperature	550 Degree C

Product Description

316/316L Stainless Steel spiral wound gasket with 3.2mm/4.5mm nominal thickness. High temperature resistance up to 650°C. Precise OD and ID tolerances.
