| Model | Top Load Tester Computerized |
| Test Speed | 25 ± 2 mm/min (Variable from 10 to 50 mm/min) |
| Paint Finish | Powder Coated for enhanced durability and rust protection |
| Load Capacity | 250 Kgf |
| Load Indicator | Microprocessor-based with ±0.05% Accuracy, Resolution: 0.1 kg |
| Peak Load Hold | Automatically captures and holds the peak load value |
| Auto Stop Feature | Stops test at preset load (Kg) or compression (mm) |
| Power Requirement | 220V AC, 50Hz |
| Software Interface | RS-232, Windows-Based Software for Data Logging, Storage & Analysis |
| Vertical Clearance | 500 mm |
| Compression Display | Least Count: 0.1 mm via Proximity or Encoder Switch |
| Compression Plates Size | Diameter 200 mm (Customizable as per sample) |

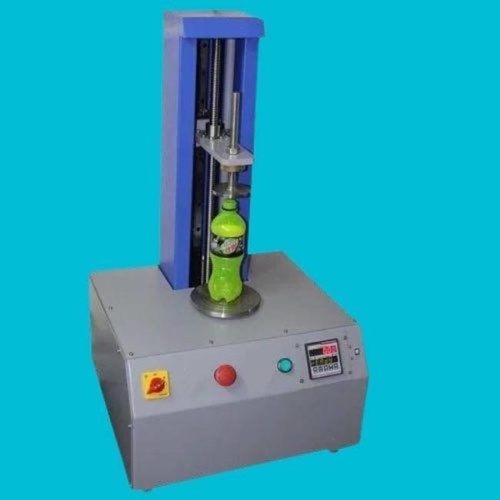

Computerized top load testing machine with 250 Kgf capacity. Features auto stop, peak load hold, and Windows-based software for data analysis. Test speed 25 mm/min.
