Product Specifications
| Weight | 1,400 kg |
| Cooling | 1 Zone Cooling Fan |
| PCB Size | 50 – 300 mm |
| Heat Type | Forced Hot-Air Convection (Top + Bottom) |
| Belt Width | 400 mm |
| Dimensions | 3,800 mm × 900 mm × 1,650 mm |
| Solder Type | Lead-Free / Leaded |
| Control Type | HMI + PLC Control |
| Heating Time | ˜ 20 Minutes |
| Heating Zone | 6 Top + 6 Bottom |
| Power Supply | 440 V AC 50 Hz 3 Phase |
| Conveyor Type | Stainless Steel Mesh Belt + Pin Chain |
| Conveyor Speed | 0 – 1.8 m/min |
| Conveyor Height | 900 mm ± 20 mm |
| Temperature Range | Ambient – 350 °C |
| Power – Start Up | 34 kW |
| Heating Zone Length | 2,400 mm |
| Power – Operation | 8 kW |
| Temperature Control | Closed-Loop PID + SSR |
| PCB Clearance Height | 25 mm |
| Temperature Accuracy | ± 2 °C |
Product Description

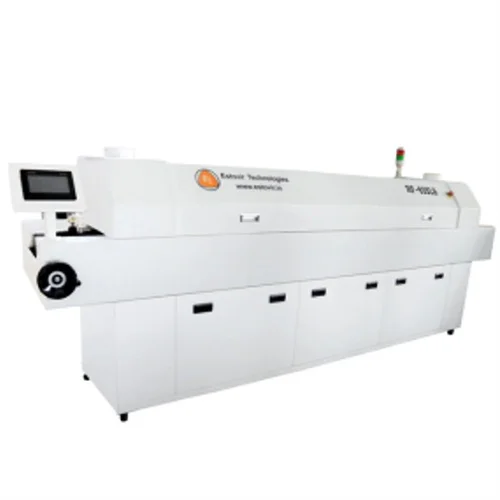

This reflow oven features 6 top and 6 bottom heating zones, 2,400 mm heating zone length, and HMI/PLC control. It operates on 440V AC, 50 Hz, 3-phase power and has a temperature range of Ambient to 350°C.
