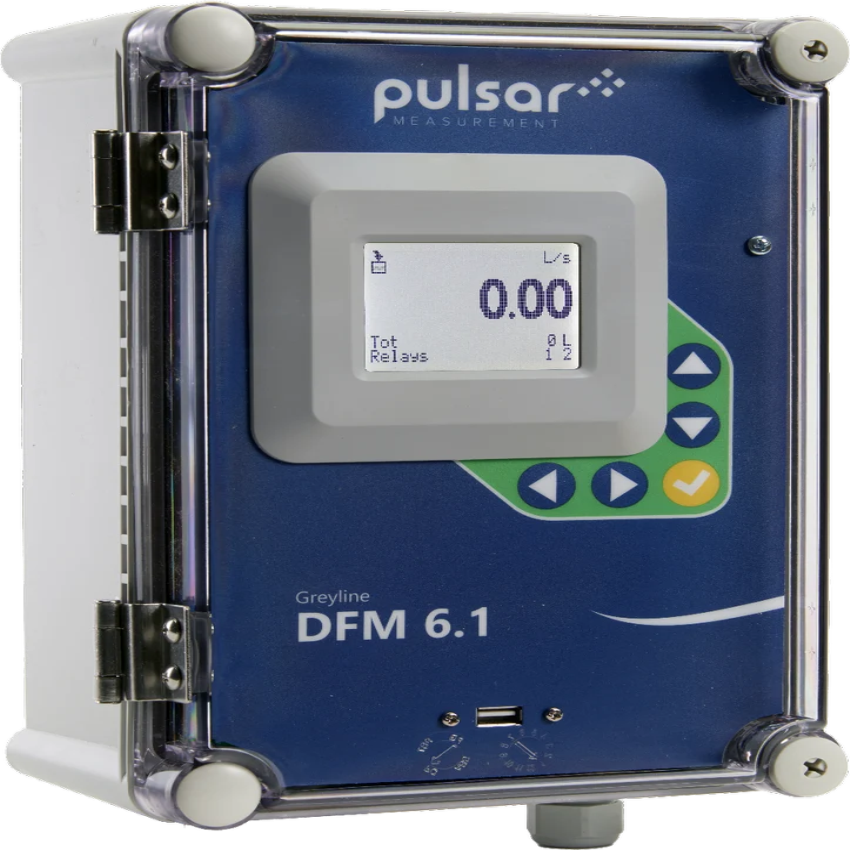

DFM 6.1 Doppler Flow Meter, Water

Name: DFM 6.1 Doppler Flow Meter, Water
Brand: Pulsar / Greyline
SKU: 648923
Price: 21900 INR
Availability: InStock

₹ 21,900

Brand: Pulsar / Greyline

JESKON SYSTEMS PRIVATE LIMITED

Verified Supplier

Location

Indore, Madhya Pradesh

GST No.

23AACCJ7074L1ZC

Total Products

29+ Products

Secure

Fast Delivery

Easy Returns

Quality

Quantity

Product Specifications

Output	Isolated 4-20mA (1000 ohm load max.) or 0-5 V DC (field selectable)
Display	White, backlit matrix - displays flow rate,relay states,16-digit totalizer,operating mode
Voltage	100-240 V
Accuracy	+-2% of reading or 0.03 m/s (0.1 ft/s) whichever is greater. Requires solids or bubbles minimum s
Frequency	50/60 Hz
Pipe Size	Any pipe ID from 12.7 mm to 4.5 m (0.5 in to 180 in)
Flow Range	+-0.03 m/s to 12.2 m/s (+-0.1 ft/s to 40 ft/s) in most applications
Data Logger	Built-in 26 million point logger with a USB output and Windows software
Power Supply	10 W maximum
Configuration	Built-in 5-button keypad with English, French, or Spanish language selection
Control Relays	Qty 2, rated 5 amp SPDT, programmable flow alarm, and/or proportional pulse
Shipping Weight	6.3 kg (14 lbs)
Enclosure Heater	NEMA4X (IP 66) polyester with a clear polycarbonate face
Application Media	Water
Operating Temperature	-23 DegreeC to 60 DegreeC (-10 DegreeF to 140 DegreeF)
