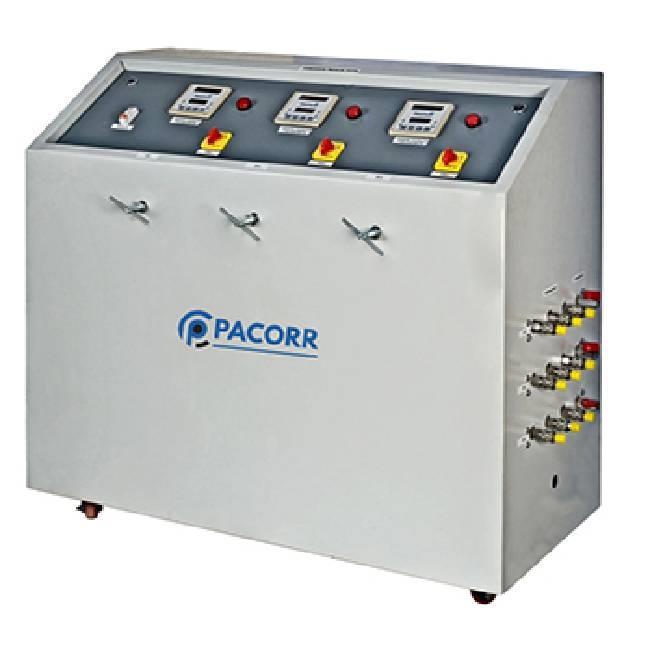

Name: Digital Hydrostatic Pressure Test Machine
Brand: PACORR TESTING INSTRUMENTS PRIVATE LIMITED
SKU: 740782
Price: 60000 INR
Availability: InStock

Digital Hydrostatic Pressure Test Machine

Product Specifications

Model	PCHPT-D
Paint	Powder Coating
modal	Hydrostatic Pressure Testing Machine - Digital
Purpose	Evaluating resistance of thermoplastic materials to internal pressure
Standards	Complies with IS, BS, ASTM, and other international standards
Technology	Utilizes pneumatic technology for consistent performance, equipped with a microcontroller for precision.
Applications	Testing pipes, valves, fittings for water, gas, and oil industries
Resolution of	0.01 kg/cm2
User-Friendly	Designed for simple operation with minimal manual intervention required.
Pressure Range	0 - 99.99 Kg/cm², accommodating a broad spectrum of testing requirements.
Pressure input	Dry and moisture-free compressed air up to 7kg/cm².
Pressure range	0 - 99.99 Kg/cm²
Pressure output	Through electro hydro-pneumatic pump with a Mercury-make ratio of 1: 25
Pressure control	Three digital pressure controllers, solenoid valves & throttle valves.
Power requirement	230V 50Hz.
Number of stations	3
Digital Calibration	Ensures accurate pressure readings and control, critical for reliable testing outcomes.
Hour meter with a range of 9999 hrs and an indication of hr	min: sec

Product Description

Tests pipes, valves, and fittings for water, gas, and oil industries. Features digital calibration, three controllers, and a pressure range of 0-99.99 Kg/cm². Complies with IS, BS, ASTM standards.
