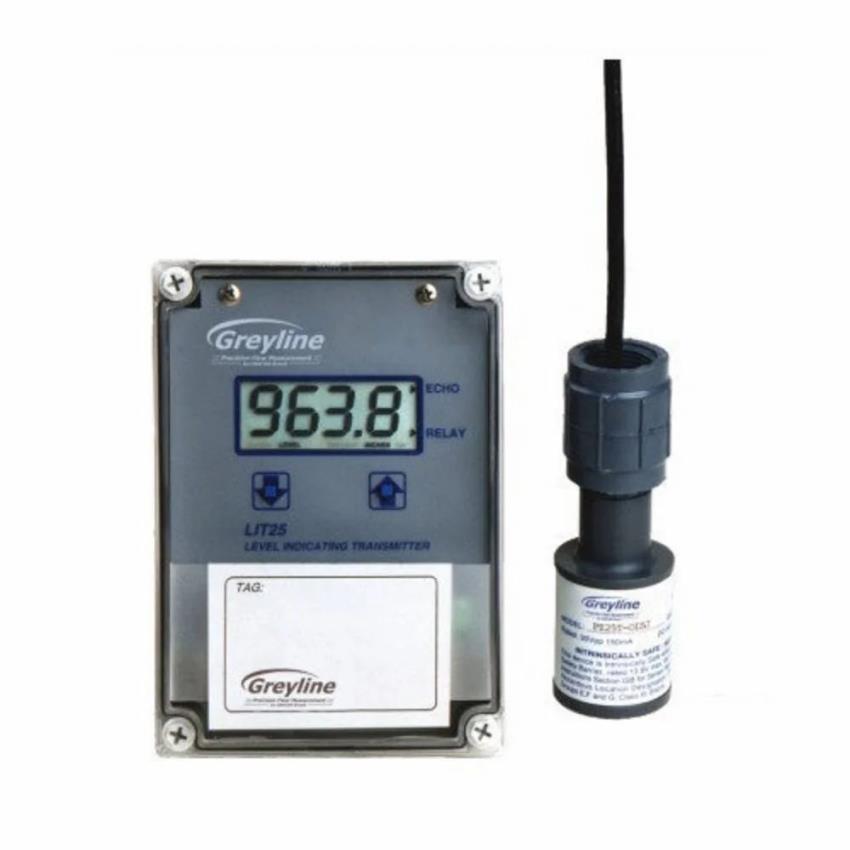

Digital LIT25 Level Indicating Transmitter

Name: Digital LIT25 Level Indicating Transmitter
Brand: JESKON SYSTEMS PRIVATE LIMITED
SKU: 648611
Price: 11900 INR
Availability: InStock

₹ 11,900

Brand: Others

JESKON SYSTEMS PRIVATE LIMITED

Verified Supplier

Location

Indore, Madhya Pradesh

GST No.

23AACCJ7074L1ZC

Total Products

29+ Products

Secure

Fast Delivery

Easy Returns

Quality

Quantity

Product Specifications

Type	Digital
Output	Isolated 4-20mA, 1000 ohm load maximum
Display	Large 19 mm (0.75 in) high, 4-digit LCD
Accuracy	+-0.25% of range or 2 mm (0.08 in); whichever is greater
Calibration	Selectable Level or Range mode. Enter min. and max. distance in inches or cm
Power Input	100-130 V AC 50/60 Hz, 5 watts maximum
Programming	Built-in 2- button keypad with menu selection. Calibration parameters are permanent when stored, eve
Signal Relay	1 Relay, rated 120-240 V AC or 24 V DC, 1 A, programmable for level alarm, echo loss alarm
Electronics Enclosure	NEMA4X (IP 66) polycarbonate with clear, shatterproof cover
Operating Temperature	-25 DegreeC to 60 DegreeC (-13 DegreeF to 140 DegreeF )
Temperature compensation	Temperature probe inside the level sensor for high accuracy in changing temperatures
Approximate Shipping Weight	2.7 kg (6 lbs)
Electrical Surge Protection	Sensor, 4-20mA and AC power input

Product Description

Digital LIT25 level indicating transmitter with isolated 4-20mA output. NEMA4X polycarbonate enclosure. Operates from -25°C to 60°C. Features include 1 relay and temperature compensation.
