| Type | Compression |

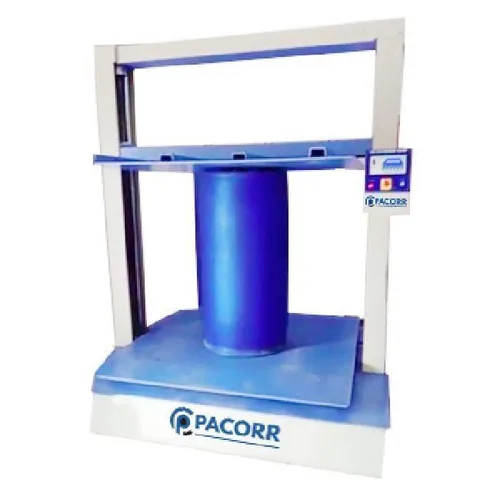

| Model | Drum Compression Tester |
| Power | 220V, Single phase, 50 Hz |
| Display | LED (Digital) |
| Options | Computerized Model Available |
| Accuracy | ± 2% full scale (with master load). |
| Capacity | 3000Kgf |
| Standard | ASTM D642, ASTM D4169 |
| Test Speed | 12.5 ± 2.5 mm/min |
| Least Count | 500gm |
| Speed Drive | 10mm/min to 50mm/min. (Optional) |
| Test Platform Size | 800mm x 800mm x 800mm |
Digital LED display compression tester with ± 2% accuracy, 3000Kgf capacity, and 800mm test platform. Operates on 220V, single phase power. ASTM D642, D4169 compliant.
