| Model | DSC |
| Capacity | 30 Ton |
| Features | Hermetically Sealed |
| Application | Weighbridge |
| Combined Error | +/- 0.05% FS |
| Ingress Protection | IP68 |
| Maximum Safe Overload | 150% FS |
| Ultimate Safe Overload | 300% FS |
| Creep Error (30 minutes) | +/- 0.06% FS |
| Maximum Excitation Voltage | 15V DC |
| Temperature Effect on Zero | +/-0.025% FS/DegC |
| Temperature Effect on Output | +/-0.025% FS/DegC |
| Compensated Temperature Range | -10 to +40 Deg C |
| Recommended Excitation Voltage | 5 to 15V DC |
| Insulation resistance at 50V DC | >= 1000 M Ohm |

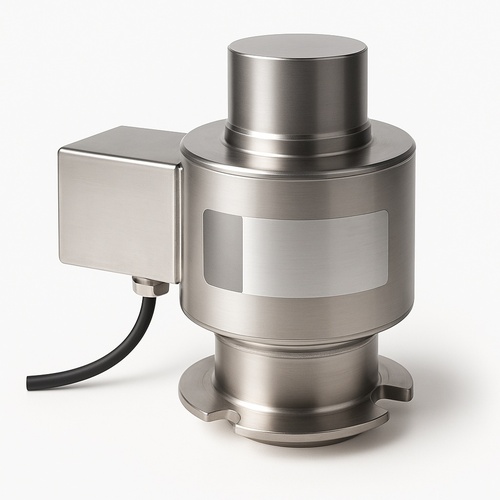

Hermetically sealed DSC digital load sensor with 30 Ton capacity, IP68 rated. Features +/-0.05% FS combined error and +/-0.025% FS/DegC temperature effects. Ideal for weighbridge applications.
