| Type | Without Canopy |
| Phase | Three |
| Battery | Exide |
| Start-up | Automatic (on 100% producer gas) |
| Frequency | 50 Hz |
| Model Name | ESB-R05A |
| Rated Power | 5 KW |
| Rated Current | 8 AMP |
| No. of Cylinder | 2 |
| Country of Origin | Made in India |
| Manpower Required | 1 |
| Water Evaporation | 5 to 7 litre |
| Ash Removal System | Manual |
| Biomass Consumption | 6.5 - 7.5 kg/hr |
| Total Area Required | L26' X W12' |
| Water Tank Capacity | 300 Litre approx |
| Biomass Feeding System | Manual |
| Acceptable Biomass Size | 2 x 2 inch |
| Peak Rated Thermal Output | 26500 Kcal/hr |
| Charcoal Generated An Hour | 0.4- 0.5 kg/hr. approx |
| Weight of the Gasifier Plant | 1.2 -1.5 ton approx |
| Continuous Duty Rated Thermal Output | 17280 Kcal/hr |
| Average Gas Calorific Value (Kcal/Nm3) | >=1100 |
| Shed for Biomass Gasifier Plant Set Up | L16' X W12' X H12' |

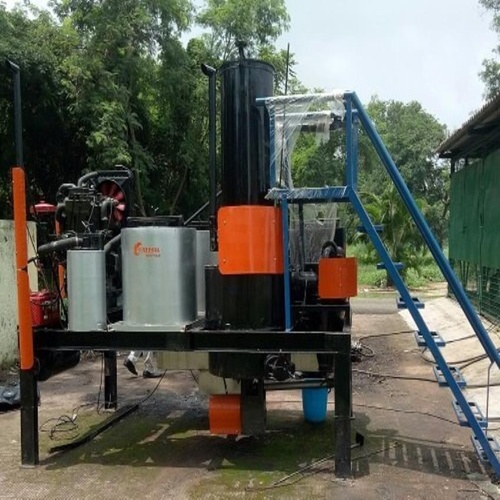

Standalone 5 KW biomass gasifier (ESB-R05A) without canopy. Three-phase, 50 Hz, manual feed, uses 6.5-7.5 kg/hr biomass, producing 1100+ Kcal/Nm3 gas.
