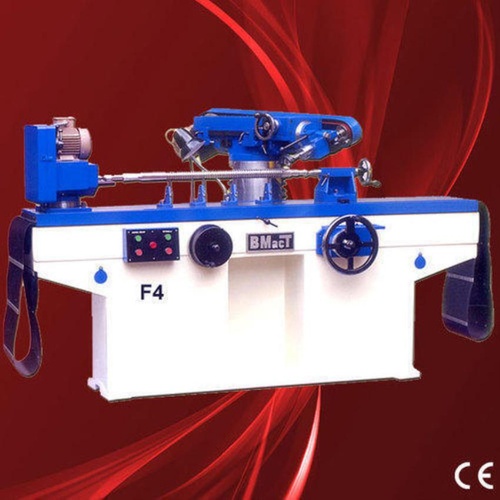

F4 Broach Grinding Machine
₹ 90,000
Brand: Others
Bhagwan udyog
Verified Supplier
Location
Ludhiana, Punjab
GST No.
03AACFB4550A1ZC
Total Products
2+ Products
Secure
Fast Delivery
Easy Returns
Quality
1
| Color | Tata Blue & FR White |
| Length | 1500 mm |
| Item Code | F-4 |
| No of Speed | 30,45,60,80 RPM |
| Quill Taper | MT-4 |
| Quill Travel | 40 mm |
| Spindle Taper | MT-4 |
| Space Occupied | 370x120x160 cm |
| Work Head Motor | 0.75 HP 960 RPM |
| Height of Centre | 155 mm |
| The Horizontal Axis | 360 degree |
| Max Sharpening Length | 1300 mm |
| No of T Slot and Size | 1-12 |
| Spindle Vertical Axis | 0-90 degree |
| Grinding Spindle Motor | 1.0 HP 1425RPM |
| Max Diameter of Broach | 160 mm |
| Table Surface Dimension | 2182 x 330 mm |
| Max Width of Flat Broach | 160 mm |
| Number Of Grinding Wheel Speed | 2800 |
| Max Cross Movement of Grinding Slide | 210 mm |
| Max Height to Table Top to Cup Stone | 100 mm |
| Min and Max Diameter Of Grinding Wheel | 50-150 mm |
| Max Vertical Movement of Spindle to Table Top | 400 mm |
| Max Height of Flat Broach top from Magnet Base | 100 mm |
F4 Broach Grinding Machine, 1.0 HP spindle motor (1425 RPM), 155mm height, 1300mm max sharpening length. Accommodates 160mm max broach diameter.
