Product Specifications

LaserFiber Laser
MaterialMild Steel
I Deal InNew Only
Laser TypeFiber Laser
Resolution18Micron
Wavelength1062 ± 3 nm
Laser ClassIV
Marking SpeedUp to 10000 mm/sec*
Repeatability50Micron
Automation GradeAutomatic
Model Name/NumberLMS
Power Consumption< 1 kW
Usage/ApplicationMetal
Ambient Temperature25 &deg;C
Pulse Repetition Rate20-80 KHz
Marking Speed Capacity8000 mm/s
Minimum Order Quantity1
Marking area (Optional)&Oslash;100/150/220mm
Average /CW Output Power10W/20W
Guide Laser/Red Aiming BeamYes
Electrical Connection (Optional)230v/50Hz - 115V/60Hz

Product Description

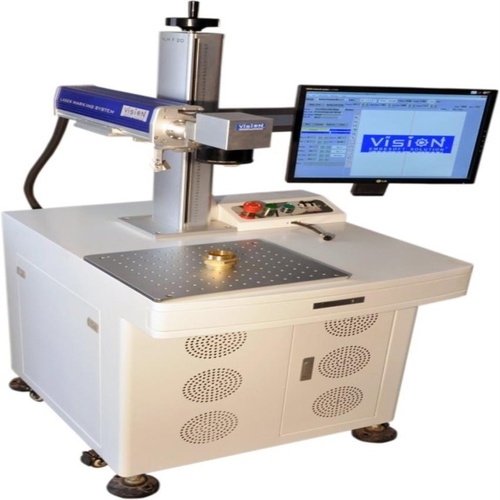

Automatic Fiber Laser mild steel roll marking machine (LMS). 10W/20W output, marking area up to Ø220mm, speed up to 10000 mm/s, 1062±3 nm wavelength.
