Product Specifications
| Modal | C6266Bx2000 |
| Bed width | 400 mm |
| Spindle nose | D1-8 |
| Main motor power | 7.5 KW (10 HP) |
| Spindle hole Dia. | 105 mm |
| Compound rest travel | 230 mm |
| Admit between centers | 2000 mm |
| Max.Cross slide travel | 368 mm |
| Range of Spindle Speed | 25-1600 RPM |
| Net Weight/Gross Weight | 3345/ 3835 Kgs |
| Spindle speeds (Number) | 16 |
| Dia. of tailstock sleeve | 90 mm |
| Packing size (L*W*H) (mm) | 3740*1140*1840 mm |
| Inch threads range (Kinds) | 7/16-80 TPI OR 40mm x 12mm |
| Taper of Spindle Hole/Bore | Dia.113mm(120)/MT5 |
| Travel of tailstock sleeve | 235 mm |
| Max. swing in gap (mm) Dia. | 900 |
| Module threads range (Kinds) | 0.25-60MP(46Kinds) |
| Max. swing over bed (mm) Dia. | 660 |
| Cross-section size of toolshank | 25*25 mm |
| Max. swing over cross slide (mm) Dia. | 440 |
| Taper of tailstock sleeve / Quill Taper | MT5 |
Product Description

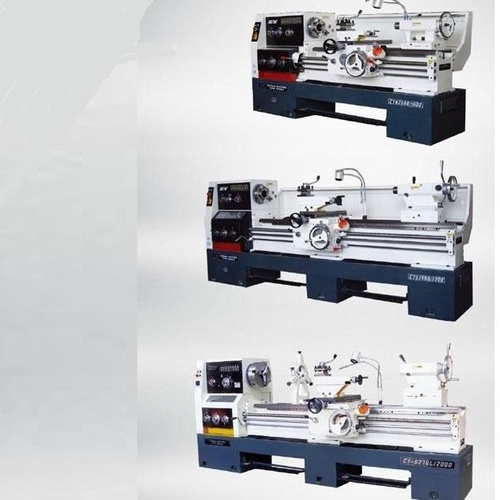

This high-speed lathe machine features all-geared precision operation. With a 2000mm admit between centers, 400mm bed width, and 7.5 KW motor, it offers 16 spindle speeds from 25-1600 RPM.
