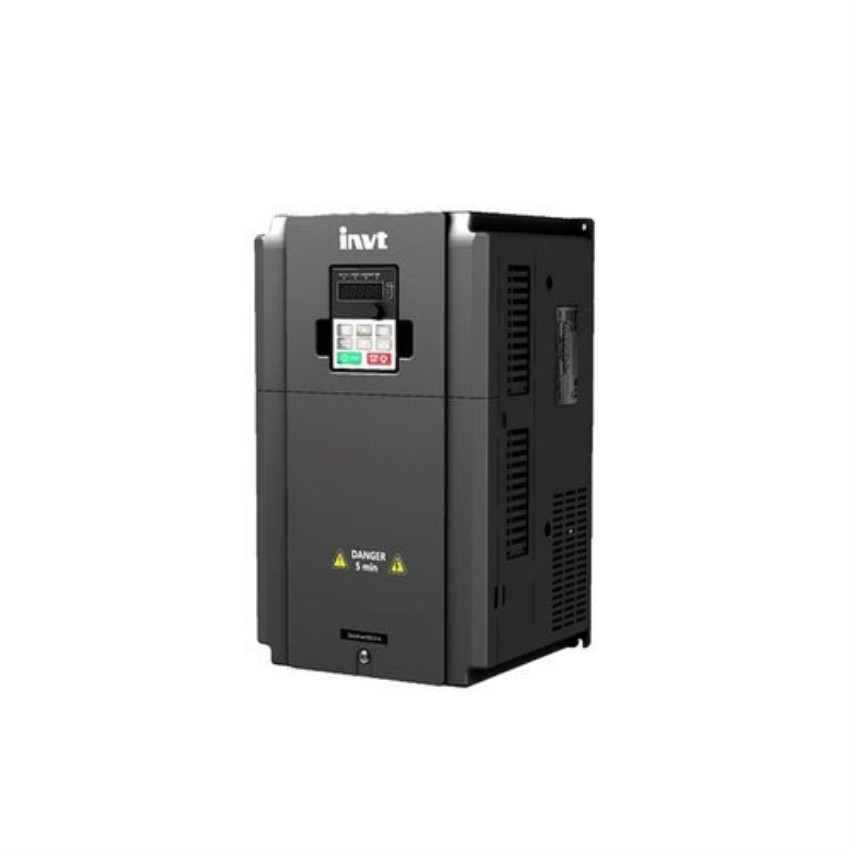

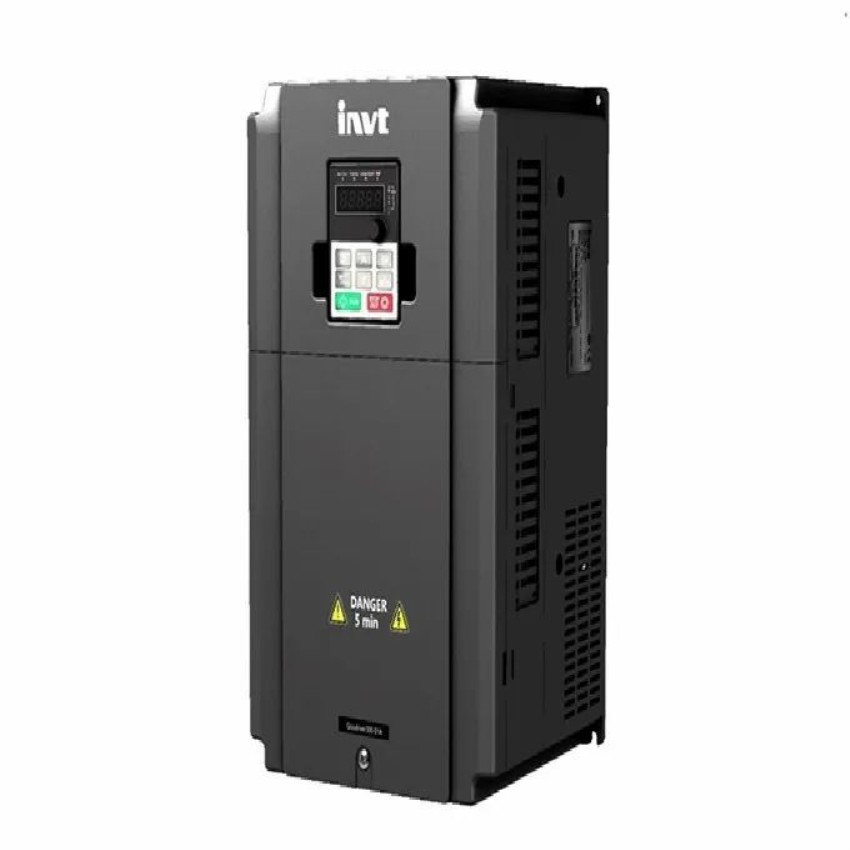

INVT GD300-01A Air Compressor Machine
₹ 49,900
Brand: Others
POWERMAG CONTROL SYSTEMS PRIVATE LTD
Verified Supplier
Location
Coimbatore, Tamil Nadu
GST No.
33AACCP2065M1ZE
Total Products
14+ Products
Secure
Fast Delivery
Easy Returns
Quality
1
| Power Input | 3PH 380V (-15%)-440V(+10%) |
| Power Output | +24VDC Power/220VAC/110VAC |
| Digital Input | : Five normal inputs Max Frequency: 1KHz |
| Digital Output | Two Relay Output (NO)250VAC/3A: One Convertible Relay Output 250VAC/3A |
| Torque Response | 20ms(SVC) |
| Protection Level | IP20 |
| Country of Origin | Made in India |
| Model Name/Number | GD300-01A Series |
| Overload Capacity | 1min at 150% |
| Speed Fluctuation | +_0.3%(SVC) |
| Analog Temp. Input | 1 Deg C range: -20Deg C Precision Error: 3Deg C |
| Analog pressure Input | Two 4-20mA/0-1.6MPa Inputs |
| Speed Control Precision | +_0.2%(SVC) |
| Temp. Of Running Environment | : -10-50 Deg C Derating is required If The temp. exceeds 40Deg C Derate |
INVT GD300-01A air compressor machine: 3PH 380-440V input. Features 0.2% speed control precision (SVC), 20ms torque response, IP20 protection, and 150% overload capacity.
