| Color | White |
| Density | 40 ± 2 kg/m³ |
| Material | Polyurethane |
| Thickness | 50-100mm |
| Panel Weight | Varies with thickness and material |
| Color Options | Bare Mill Finish, Off White, Sky Blue, Royal Blue, Taurus Blue, Mist Green, Caulfield Green, Brick Red, Sheel Grey (Topskin) Pure White (Liner) |
| Core Material | Polyurethane foam (PUF) & Polyisocyanurate (PIR) |
| Fire Property | B3 as per DIN 4102 (B2 & PIR upon request) |
| Joinery System | Tongue and Groove, Camlock, Overlapping |
| Outer Material | Pre-Painted Galvanized Iron Steel (PPGI), Pre-Painted Galvalume Steel (PPGL), SS304 |
| Tensile Stress | 150 kPa |
| Panel Thickness | Wall Panel: 30 mm, 40 mm, 50 mm, 60 mm, 80 mm, 100 mm, 120 mm, 150 mm Ceiling Panel: 30 mm, 40 mm, 50 mm, 60 mm, 80 mm, 100 mm, 120 mm, 150 mm Roofing Panel: 10 mm, 30 mm, 50 mm, 60 mm, 80 mm, 100 mm, |
| Bending Strength | 200 to 250 kPa |
| Shear Resistance | 100 kPa |
| Surface Treatment | Color Coated |
| Thickness (in mm) | 60 mm |
| Usage/Application | Cold Storage |
| Compressive Strength | 120 kPa |
| Thermal Conductivity | K value (Thermal conductivity of PU) - 0.022 W/mK Tolerance: +/- 0.002 |
| Compression Resistance | 100 kPa |
| Minimum Order Quantity | 50 Square Meter |
| Product Specifications | Details |
| Temperature Resistance | -40°C to +80°C |
| Manufacturing Technique | Cold Rolled |
| Outer Material Thickness | 0.3/0.4 mm, 0.4/0.4 mm, 0.45/0.45 mm, 0.5/0.5 mm |
| Dimensions - Custom Product | Width: 1000 mm / 1150 mm Length: 3 MTR to 15 MTR |
| Dimensions - Standard Product | Width: 1000 mm / 1150 mm Length: 8FT, 10FT, 12FT, 16FT, 20FT |

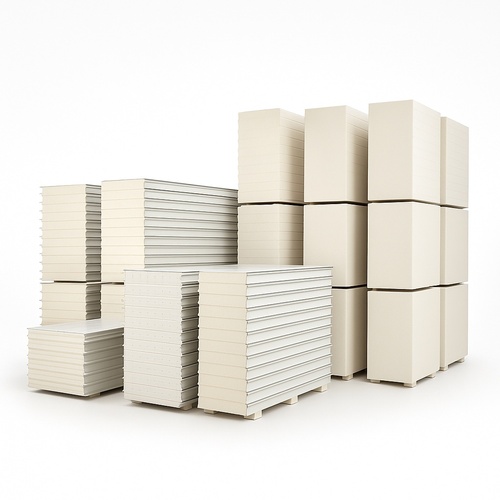

60mm thick PUF insulated panel for cold storage. Features 100 kPa shear resistance, 150 kPa tensile stress, and -40°C to +80°C temperature resistance. Density 40 kg/m³.
