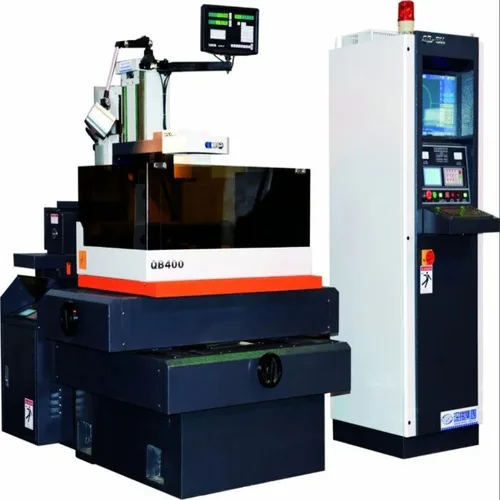

Molybdenum Wire Cncqb Series Economy Type Machine, Qb 400
₹ 8,90,000
Brand: Others
SICHUAN YNJ INDUSTRIES PRIVATE LIMITED
Verified Supplier
Location
Anand, Gujarat
GST No.
24ABFCS9643C1ZC
Secure
Fast Delivery
Easy Returns
Quality
1
| Guide | Japanese THK linear guide |
| Layout | Vertical |
| Bearing | Japanese NSK bearing |
| Tank size | 1080x620x630mm |
| Drive Type | Stepper motor |
| Drive tpye | Stepper motor |
| Table Size | 600x900mm |
| Tank size mm | 1080×620×630 |
| Wire Diameter | 0.1-0.20mm |
| Machine Weight | 1600kg |
| Uv Axis Travel | +-25mm |
| X Y axis screw | ball screw made in China |
| Automation Grade | Automatic |
| Model Name/Number | QB 400 |
| Max .taper cutting | +-6 (need install wire guide) |
| Table Travel In Mm | 400x500mm |
| The best Roughness | ≤1.0μm |
| Volume of the tank | 100litre |
| Volume of the tank L | 100 |
| Wire cylinder stroke | 250mm |
| Workpiece Max Weight | 600kg |
| ≤ 5 μm / 30 Pcs | 0.02 Mm / 200 Mm |
| Wire cylinder stroke mm | 250 |
| Workpiece Max Thickness | 400mm |
| The fast processing speed | 180mm2/min |
| ≤ 1.0μm / 30000 Mm² | ≤ ±5 μm |
| Composite machining accuracy mm | 0.01 |
| Composite machining accuracy (mm) | 0.01mm |
| The fast processing speed mm2/min | 180mm2/min |
Automatic CNC Machine QB 400 for wire cutting. Features Japanese NSK bearings and THK linear guides. Accommodates 400mm workpiece thickness and 600kg weight.
