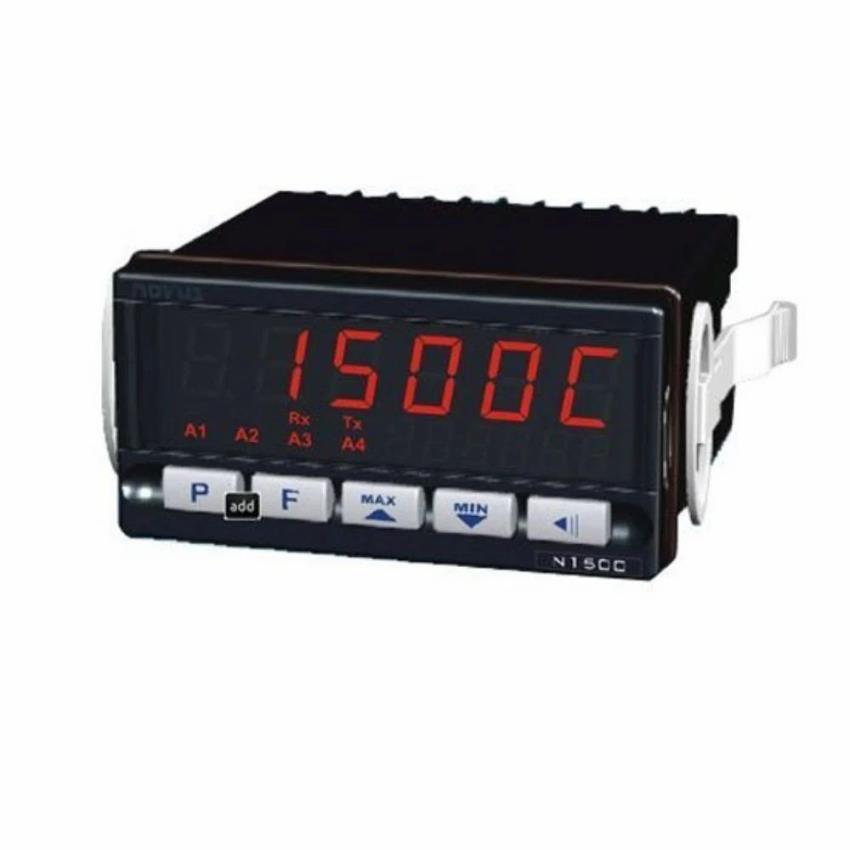

Name: Novus N1500 Universal Process Indicator
Brand: TECHWAY INSTRUMENTS
SKU: 591376
Price: 11900 INR
Availability: InStock

Product Specifications

Model	N1500
Alarms	Two 3 A/250 Vac SPDT relays in the standard version
Accuracy	J, K, T, E, B and N thermocouples 0.25% of max. span +/-1oC
Back Panel	IP30, ABS+PC UL94 V-0
Dimensions	96 x 48 x 92 mm. 93 x 45 mm panel cutout.
Front Panel	IP65, Polycarbonate UL94 V-2
Alarm functions	High, Low, Differential high, Differential low, Differential, sensor break
Input Resistance	0-50 mV, Pt100
Aproximate Weight	240g (standard) to 265g (complete)
Pt100 Measurement	3 Wire circuit. Bias current 750 uA
Input sampling rate	15 samples/sec for V and mA input, 7.5 samples/sec for mV and 5 samples/sec for other signals
Power Supply Output	24 VDC +-10%, 35 mA (N1500) or 10 VDC +-0.5%, 35 mA
Environment Conditions	0 to 55 Degree C, 20 to 95% RH, non-condensing.

Product Description

Novus N1500 universal process indicator. Accepts thermocouple and Pt100 inputs. Features two 3A/250Vac relays, 24 VDC output, and IP65 front panel.
