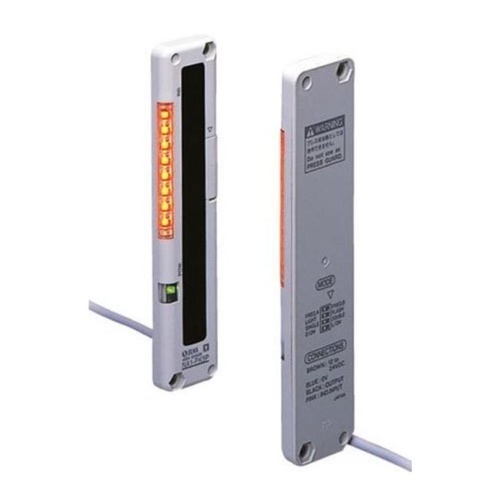

Name: Panasonic NA1-PK5-PN Picking Sensor
Brand: Panasonic
SKU: 592641
Price: 5900 INR
Availability: InStock

Product Specifications

Model	No : NA1-PK5-PN
Weight	Net weight: Emitter 80 g approx., Receiver 85 g approx. Gross weight: 270 g approx.
Model No	NA1-PK5-PN
Beam Pitch	25 mm 0.984 in
Protection	IP62 (IEC)
Sensing Height	100 mm 3.937 in
Supply Voltage	12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less
Ambient Humidity	35 to 85 % RH, Storage: 35 to 85 % RH
Number of Beam Channels	5 beam channels
Voltage withstandability	1,000 V AC for one min. between all supply terminals connected together and enclosure

Product Description

Panasonic NA1-PK5-PN picking sensor with 5 beam channels, 25mm beam pitch, and 100mm sensing height. Operates on 12-24V DC, IP62 rated.
