Product Specifications
| Drive | Variable Speed DC/AC |
| Modal | Paper Plate Lamination Machine |
| Power | Electric |
| Voltage | 340 V |
| Material | Mild Steel |
| Frequency | 50 Hz |
| Heat Source | Electrical / Hot Air |
| Max Web Width | 600 - 1600 mm |
| Working Speed | 140 m/min to 250 m/min |
| Drying Section | Multi-zone arch type |
| Automatic Grade | Automatic |
| Coating Section | Gravure / Reverse Roll |
| Unwind and Rewind | Simplex / Duplex |
| Usage/Application | Industrial |
| Laminating Section | Chilling / Heating Roller with Pneumatic Nip Roll |
| Rewind Roll Diameter | 600 - 1000 mm |
| Unwind Roll Diameter | 600 - 1000 mm |
Product Description

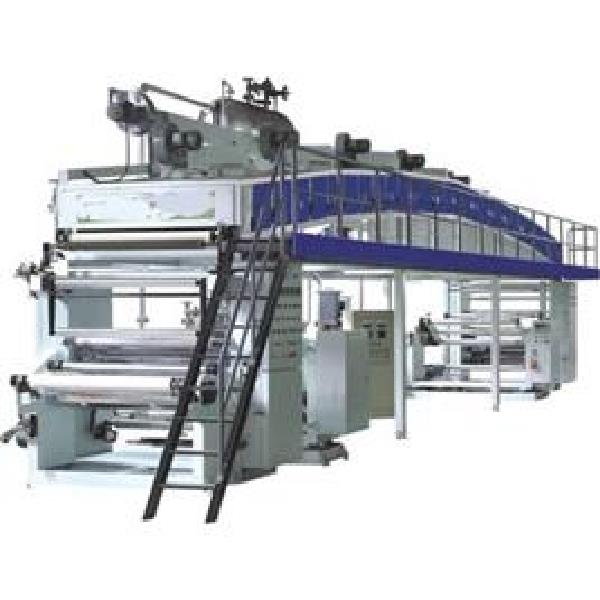

Automatic industrial paper plate lamination machine. Features Gravure/Reverse Roll coating, multi-zone arch drying, and Variable Speed DC/AC drive. Operates with electrical or hot air heat source. Max web width 600-1600mm.
