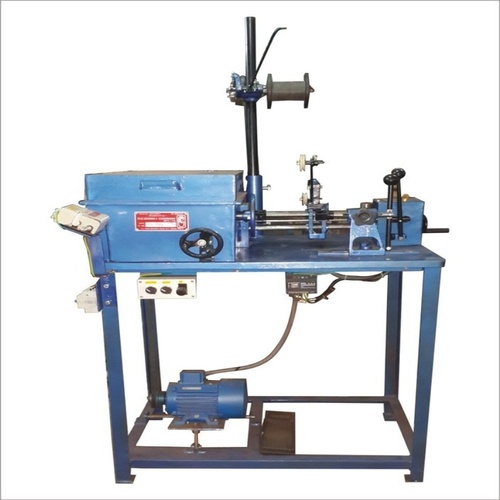

PCG Coil Winding Machine for CT PT Transformer, 500-800 rpm

₹ 53,900
Brand: Others
P.C.GHOSH & CO. PVT. LTD.
Verified Supplier
Location
Kolkata, West Bengal
GST No.
19AADCP1441J1ZF
Total Products
16+ Products
Secure
Fast Delivery
Easy Returns
Quality
1

Product Specifications

Phaseany
DesignStandard
Max Speed500-800 rpm
Wire range0.05 to 1.25 mm dia(18 S.W.G to 40 S.W.G)
AvailabilityIn Stock
Automation GradeSemi-Automatic
Country of OriginMade in India
Layer width range8 to 180 mm
Maximum coil diameter250 mm
Distance between centers260 mm
Winding speeds approximate480, 922, 1200 r.p.m
Overall dimensions L*B*h approx800*560*1450 mm
Max. weight of bobbin on spindle15 kgs.
Maximum size weight of reel on carrier150mm dia. 150mm, length 5kgs weight

Product Description

Semi-automatic coil winding machine for CT/PT transformers. Features 500-800 rpm speed, 250mm max coil diameter, and accommodates wire diameters from 0.05 to 1.25mm. Measures 800x560x1450mm.
