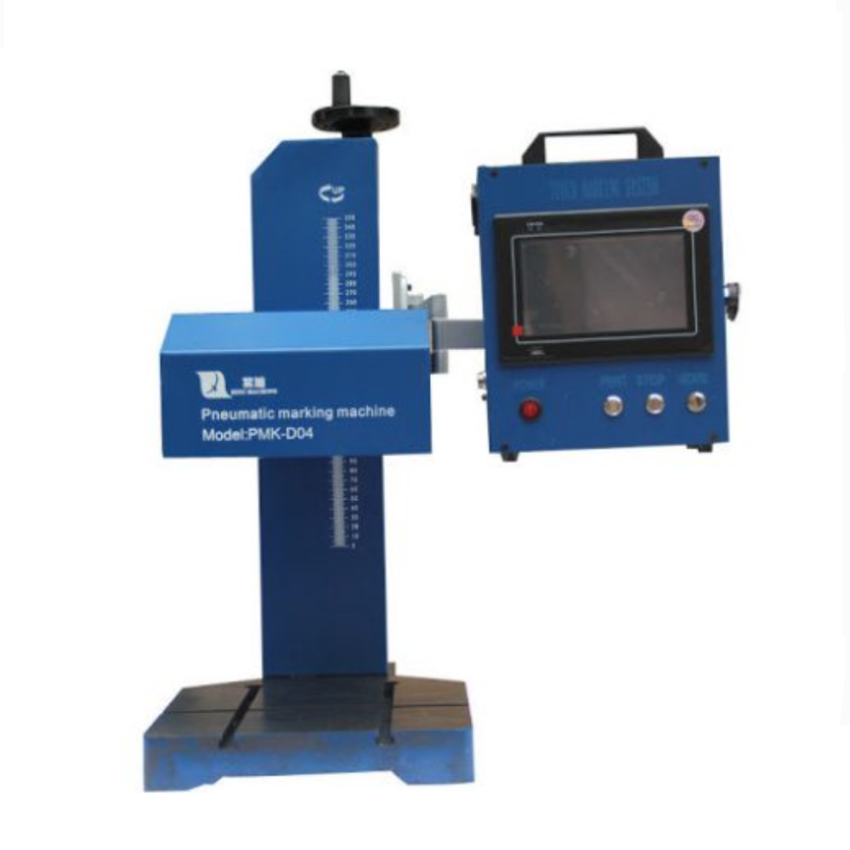

Pneumatic Multi-Material Marking Machine

₹ 1,20,000
Brand: Others
SV LASER MARKING AND EQUIPMENT SOLUTION
Verified Supplier
Location
Aurangabad, Maharashtra
GST No.
27BLMPK1677B1Z2
Total Products
7+ Products
Secure
Fast Delivery
Easy Returns
Quality
1

Product Specifications

PowerAC110- 220V +/- 10%,50Hz
Package(GW : 65 Kg)
MaterialAluminum, Iron, Copper, Stainless Steel, coated & Plated Metals, Nylon, ABS, PVC
SoftwareDPMCAD(7 Inch Standalone Touch Screen / PC based(Optional)
InterfaceUSB 2.0
WorkpieceHRC62
TechnologyStepper Driven
Marking Area110x 110mm
Marking Depth0.1-0.7 mm
Marking Speed1/3 Alphanumeric per sec
Indenter SupportEN2,EN3,EN4,EN6,EN4L,EN4LP
Marking Accuracy0.02mm
Hitting Frequency250Hz
Indenter hardnessHRA95
Model Name/NumberPMK D04
Power Consumption305W
Relative Humidity90%
Usage/ApplicationAutomobile or bodywork of motorcycle,car frame,automotive chassis,engine,and mechanical part,ma
Load Linear SystemHiwin (Original)
Working Temperature0-400 C
Inputting Air Pressure0.3 - 0.6 mpa
Minimum Order Quantity1 Unit
Travel Of Marking Head300mm
Switch and DATA ConnectorSteel Base
Main Board & LCD ControlDPMCAD V 9.0

Product Description

Pneumatic marking machine for various metals and plastics. Features 110x110mm marking area, 0.02mm accuracy, 0.1-0.7mm depth, and 250Hz hitting frequency. USB 2.0 interface.
