Product Specifications
| model | APT-500 |
| Material | Polypropylene |
| Max Flow | 586 Liter per Minute on 1000 kg/m3 density. |
| Max Head | Up to 50 Meters on 1000 kg/m3 density. |
| Model No | APT-500 |
| NRV Ball | PTFE |
| Air Inlet | 1/2'' BSP (13 mm) |
| Diaphragm | PTFE |
| Pump Weight | 30 Kg |
| Power Source | Compressed Air |
| Diaphragm Size | OD-296 mm |
| Max Temperature | 70° Celsius |
| Backup Diaphragm | Santoprene |
| Construction Type | Bolted |
| Usage/Application | Acid and Chemicals |
| Fluid Inlet & Outlet | 50 mm x 50 mm (Flange end Connection) |
| Packing Size (lxbxh) | 53 cm x 38 cm x 74 cm |
| Air pressure required | 10 bar (100 psi) pressure to work on full efficiency. |
| Per stroke Displacement | 2 LPM at 7 bar pressure, assuming a material of 1000 kg/m3 density. |
Product Description

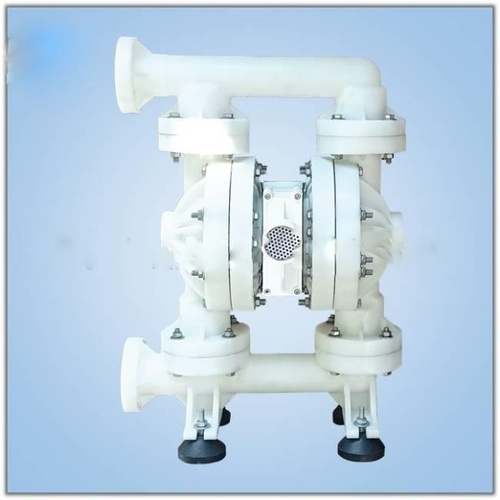

Polypropylene diaphragm pump (APT-500) with PTFE diaphragms and NRV balls. Features 50mm flange connections, max flow 586 LPM, max head 50m, and 70°C max temperature. Air operated.
