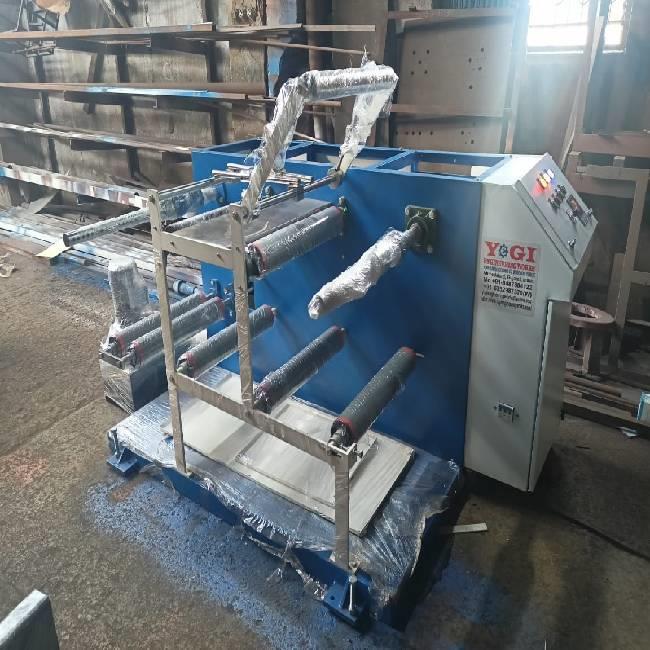

Pouch Type Winding Machine

₹ 3,40,000
Brand: Others
Yogi Engineering Works
Verified Supplier
Location
Ahmedabad, Gujarat
GST No.
24AADFY6143M1ZU
Total Products
25+ Products
Secure
Fast Delivery
Easy Returns
Quality
1

Product Specifications

ModelPouch Winding Machine
Motor2 HP A.Ç. Motor
Heavy DutyMS Plate Structure
Control Panel2 HP A.C.-Digital A.Ç. frequency Drive
Mechanical ShaftUnwinder side Chuck-Nut-Bearing use
Weight of Machine800 Kg Approx.
Machine Available:Three Phase
Maximum Roll Width:150mm, 450mm, 700mm & 1000mm Standard
Material will be Process:LD, PP, Film, Pouch, Foil etc.
Jumbo Roll Weight Capacity35 Kg
Unwinder/Rewinder Roll Dia-Up to 300mm
All Side Vertical Covered fromM.S, Sheet
Heavy Duty Chain Drive System Rewinding Speed:120 MPM.

Product Description

Heavy-duty pouch winding machine with 2 HP AC motor and digital frequency drive. Handles LD, PP, film, pouch, and foil materials. Rewinding speed up to 120 MPM. Max roll width up to 1000mm.
