Product Specifications
| Size | small |
| Weight | 640g *Include battery |
| Display | LCD with backlight 128×64dots, Backlight ON/OFFfunction |
| Material | plastic |
| JIS Class | Conforms to the general AA class illuminance meter (JIS C 1609-1-2006) |
| Power supply | Nickel hydride AA battery×4 / Exclusive AC adapter (option) |
| Accuracy (*1) | Ev : ±2??? ±1digit |
| Display modes | XYZ, Ev, xy, u'v', Dominant wavelength (λd), Excitation purity (Pe), |
| Interface (*6) | RS-232C, Wireless LAN |
| Photo detector | Silicone photo diode array |
| Meas. time (*5) | Approx. 0.2sec *Manual mode : 100ms / STR2 command use |
| Spectral method | LVF (Linear Variable Filter) *Made by Topcon |
| Meas. range mode | AUTO (full/first/adjust), MANUAL |
| Measurement Mode | light |
| Wavelength Range | visible |
| Country of Origin | Made in India |
| Model Name/Number | 11 |
| Humidity drift : fH | within ±3% (without drew condensation) |
| Operating condition | Temperature : -10 - 40???, Humidity : 85% or less with no condensation |
| Spectral Resolution | visible |
| Cosine response : f2 | 3% or less |
| Meas. Wavelength range | 380 - 780nm |
| Minimum Order Quantity | 1 Piece |
| Temperature drift : fT | within ±3% ( -10 - 40??? with 23??? as reference) |
| Repeatability (*1)(*2)(*3) | Ev :±0.5??? +1digit |
| Meas. Illuminance range (*1) | 2 - 1,000,000 lx |
| Output wavelength resolution | 1nm |
| Dimensions (W×D×H) | 70(W)×250(D)×78(H) mm??? *Without beam detector cap and power SW |
| Visible-region relative spectral response characteristics : ???1' | 2% or less |
Product Description

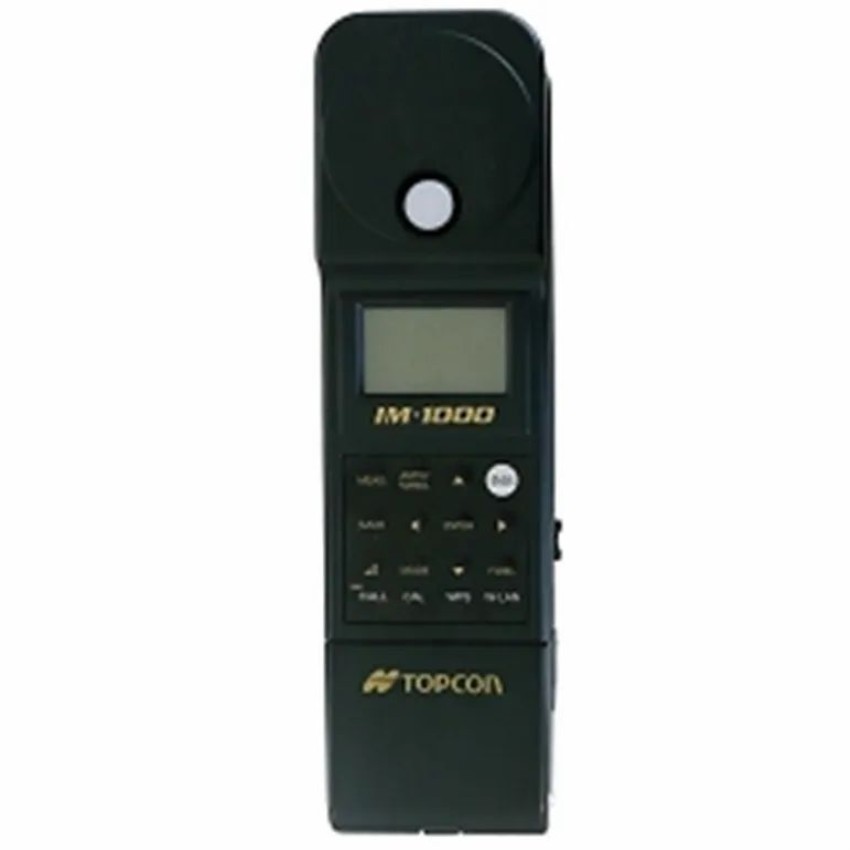

Small plastic illuminance spectrometer with LCD backlight display. Measures visible light range (380-780nm). Powered by battery or AC adapter. RS-232C and Wireless LAN interface. Made in India.
