| Type | Single Ended Shear Beam |
| Model | SQB |
| Capacity | 10 Ton |
| Material | Alloy Steel |
| Cable Length | 3 m |
| Zero balance | +/- 1% FS |
| Input Resistance | 400 +/- 20 Ohms |
| Output Resistance | 352 +/- 3 Ohms |
| Ingress Protection | IP67 |
| Maximum Safe Overload | 150% FS |
| Output Sensitivity(FS) | 3.0 +/- 0.003 mV/V |
| Ultimate Safe Overload | 180% FS |
| Maximum Excitation Voltage | 15V DC |
| Operating Temperatue Range | -30 to +70 Deg C |
| Temperature Effect on Zero | +/-0.02% FS/DegC |
| Temperature Effect on Output | +/-0.02% FS/DegC |
| Compensated Temperature Range | -10 to +40 Deg C |
| Recommended Excitation Voltage | 10 to 12V DC |
| Insulation resistance at 50V DC | >= 5000 M Ohm |

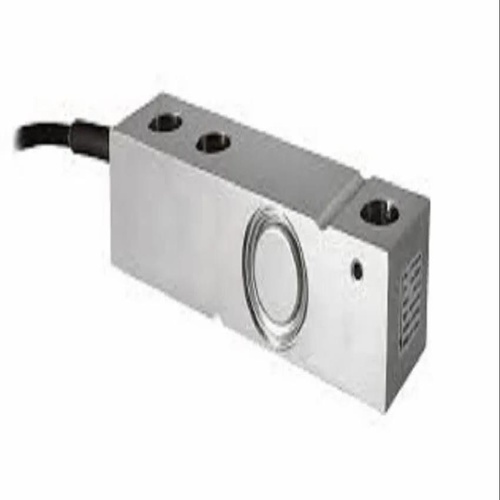

Alloy steel single ended shear beam load cell (SQB) with 10 Ton capacity. IP67 rated, 3.0 mV/V sensitivity, and operates within -30 to +70 Deg C range.
Brand: ADI
