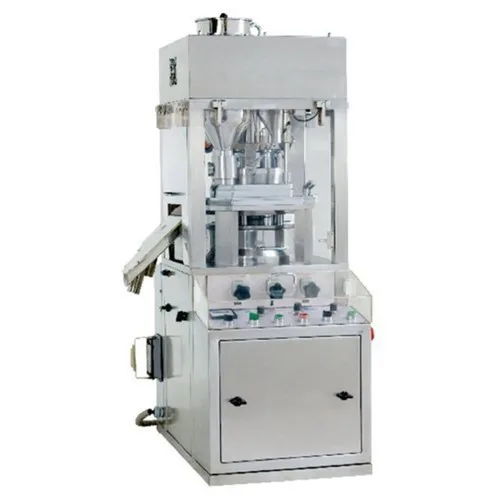

Square GMP Tablet Press Machine, Model TAB 10AB-9
₹ 10,40,000
Brand: Tabpack
Secure
Fast Delivery
Easy Returns
Quality
1
| Model | Name/Number : TAB 10AB-9 |
| Weight | 850 kg |
| Tooling | D |
| Capacity | 13500 tab/hour |
| Dimension | 1300x1400x2050 mm ( LxWxH) |
| Die Height | 23.81 mm |
| Punch Type | EU/TSM |
| Feeder Type | Gravity Feeder |
| Motor Power | 3.0 hp/2.2kW |
| Die Diameter | 38.1 mm |
| Punch Length | 133.6 mm |
| Standard Type | STD Variant |
| Tablet Thickness | 1 mm |
| Model Name/Number | TAB 10AB-9 |
| Punch Shaft Diameter | 25.4 mm |
| Maximum Filling Depth | 17 mm |
| Maximum Tablet Diameter | 22 mm |
| Number of Punch Station | 9 Station |
| Compressed Air Requirements | 6 bar |
GMP compliant single rotary tablet press. Features a gravity feeder, 9 station tooling (D type), and 3.0 hp motor. Processes up to 13,500 tablets/hour with a max diameter of 22 mm.
