Product Specifications
| Power | AC220V,50Hz |
| model | VM-LC-50A |
| Turret | Automatic (motorized switch) |
| Eyepiece | 10X digital eyepiece with built-in encoder, automatic calculate data |
| Standard | ISO 6507, ASTM E92, JIS Z2244, GB/T 4340.2 |
| Objective | 10X, 20X |
| Dwell time | 1-99S (1 second per step) |
| Net weight | 42kg |
| Test space | 165mm x 130mm (Height x Depth) |
| Data output | Large LCD screen display (or optional purchase built-in printer) |
| Gross weight | 55kg |
| Packing size | 690x430x930mm |
| Force loading | Automatic loading - dwell - unloading |
| Magnification | 100X (measurement), 200X (measurement); Measuring range:400um Both lens can b e u s e d t o observe and measurement work directly |
| Testing Force | 0.3Kgf (2.94N), 0.5Kgf (4.90N), 1.0 Kgf (9.8N), 2.0Kgf(19.6N), 2.5Kgf(24.5N), 3.0Kgf(29.4N), 5.0Kgf(49.0N), 10.0Kgf(98.0N), 20Kgf(196.0N), 30Kgf(294.0N), 50Kgf(490.0N) |
| Hardness Scale | HV0.3, HV0.5, HV1, HV2, HV2.5, HV3, HV5, HV10, HV20, HV30, HV50 |
| Hardness range | 5-4000HV (screen display range: 5 - 9999HV |
| Conversion Scales | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T |
| Overall Dimension | 585x200x630mm |
| Min measuring unit | 0.01µm |
| XY work table (optional purchase) | Dim.:100x100 mm, Max. Travel Range: 25x25mm, Moving Resolution Ratio: 0.01mm |
Product Description

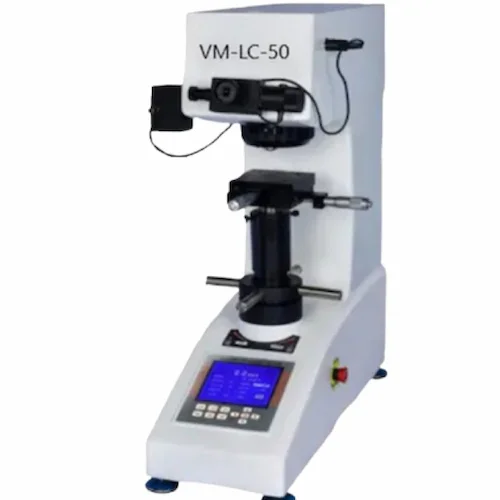

Vickers hardness tester VM-LC-50A, AC220V, 50Hz. Offers multiple conversion scales, automatic turret, and digital LCD display for hardness range 5-4000HV.
Similar Products

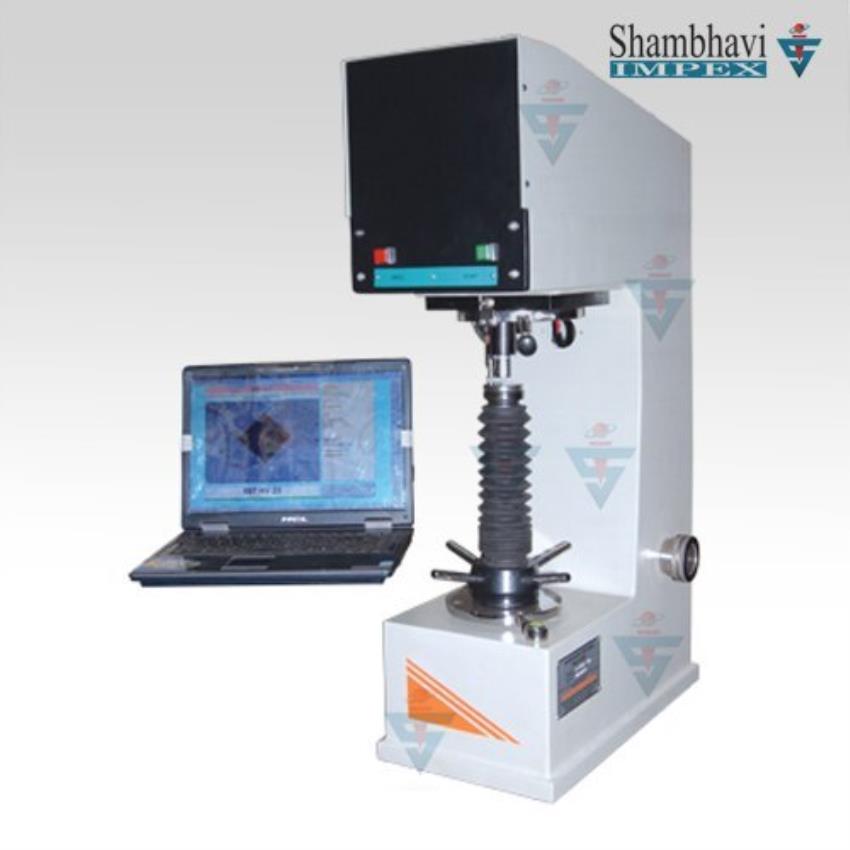

Vickers Hardness Testing Machine - Digital/Computerized
