Product Specifications
| Peak Power | 2.5 kW |
| Pouch Style | Three side / four side sealin |
| Pouch Width | up to 105 mm |
| Feeding head | Pneumatic piston Filling System. |
| Pouch Length | up to 140 mm |
| Film Material | Any heat sealable laminated Film |
| Packing range | 50 g.- 100 g |
| Pouch Counter | Provided |
| Air compressor | 2 hp,3 ph,415 V,AC 50 Hz. (Clients scope) |
| Film Thickness | 65 - 85 microns |
| Max Film Width | up to 210mm |
| Air consumption | 4.5 - 5 cfm @ 6.5 kg/cm |
| Production Speed | 35-45 |
| Power Consumption | 1.5 kW/hr |
| Machine Dimensions | 1325 (H) x 450 (W) x 650 (Depth) mm. 1850 (H) x 650 (w) x 850 (depth) mm. |
| Date printing Device | Optional. |
| Film Guard mechanism | Auto stop when film is exhausted |
| Sealer heating system | Continuous heating system |
| Outer Dia. of the film Roll | up to 350 mm |
| Inner Core Dia. of Film Roll | 70 mm |
Product Description

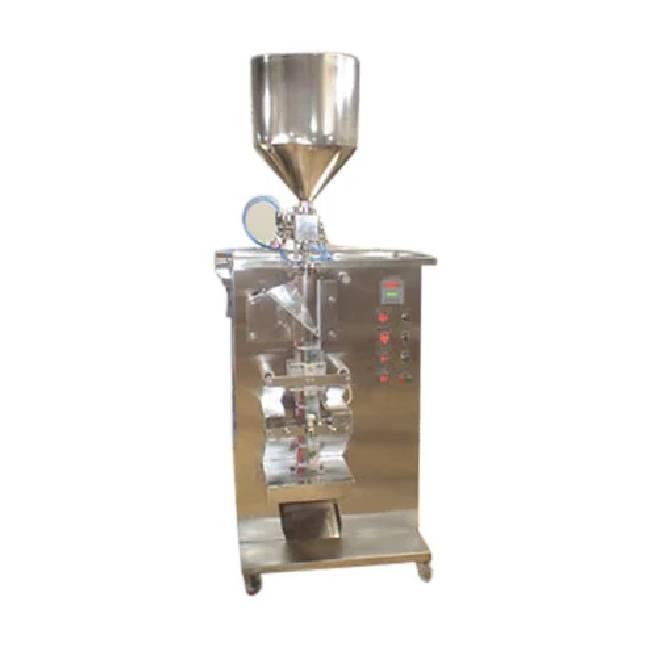

Automated sachet packing machine with a 35-45 pouch/min speed. Features pneumatic piston filling, continuous heating, and film exhaustion auto-stop. Supports up to 210mm film width.
